SKU: SRG-SR3026B MANUFACTURER PART: 3026B UPC: 6941590012506
New
Price:
$43.99

Shipping calculated at checkout

In Stock
See a lower price? Tell us about it here

Mack Accidental Damage (ADH) Protection Plan

Protect your new camera or lens from unexpected accidents. Mack’s ADH Plan covers drops, spills, impact damage, and mechanical or electrical failures after the manufacturer’s warranty ends. Pixel Connection handles the digital registration for you and will assist with any service needs, making the process simple and stress-free.

What’s Included:

  • Accidental damage protection (drops, spills, impact)
  • Mechanical & electrical failure coverage after manufacturer warranty
  • Parts and labor for all covered repairs
  • Professional service through Mack Worldwide Warranty
  • Pixel Connection support and mediation for any claims.

Eligibility:

  • Valid for new, non–gray market gear
  • Must be added at time of purchase or within the allowable window

See the Yard Guard

AVAILABILITY & STORE PICKUP LOCATIONS

Pixel Connection - OHIO In Stock | Available for Pick-up

2100 Center Road, Avon, Ohio, United States

440-934-1544
Pixel Connection - NASHVILLE Out of Stock | Pickup currently unavailable

700 Rundle Avenue, Nashville, Tennessee, United States

615-290-1150

Short description

Quick Overview

  • Attaches to Left or Right Side of Gimbal
  • Tilt-Adjustable Thumbwheel Monitor Mount
  • Top and Bottom Shoe Mounts
  • Top and Side 1/4"-20 Threads
  • Matte Nonreflective Surface

Redbar

Product Description

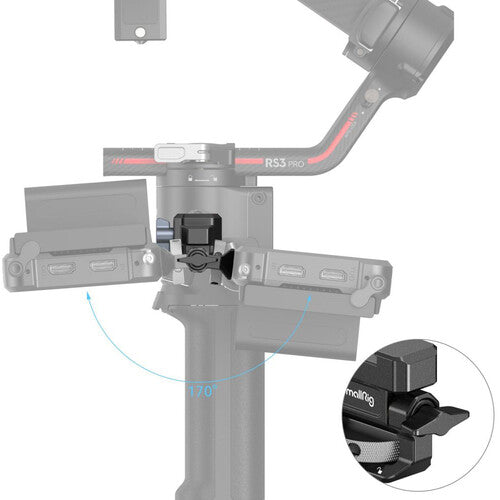

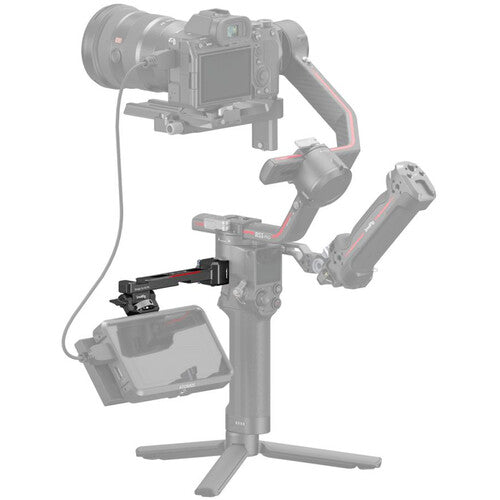

Via a built-in NATO mount, this SmallRig Monitor Mount attaches to the NATO rail on the side of your DJI RS 2, RSC 2, RS 3, RS 3 Pro, RS 3 Mini, RS 4, or RS 4 Pro gimbal and provides multiple mounting options for expanding your gimbal on either side, in a quick release solution. It can rotate 165° to ensure the right position for your monitor.

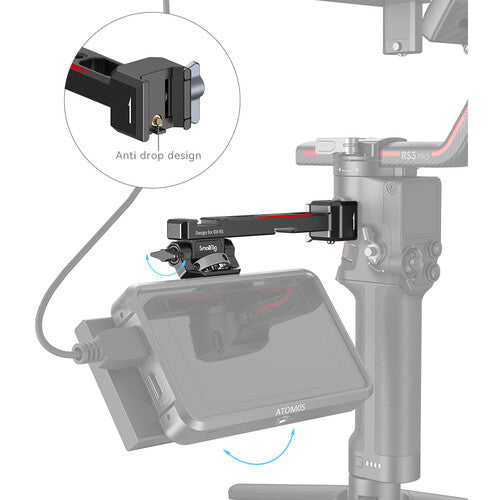

It's designed with a matte, nonreflective surface to match the aesthetic of the gimbals, and it has a robust aluminum construction with a locating pin on the NATO mount for secure attachment. Using the shoe mounts, 1/4"-20 thumbscrew, and 1/4"-20 threads, you can attach a monitor and accessories such as lights, microphones, audio receivers, and magic arms.

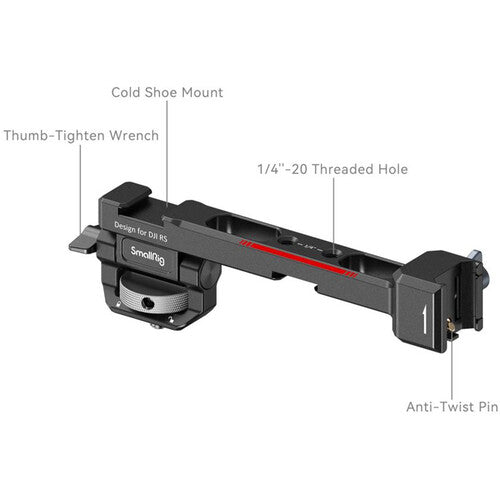

Mount Types
A top shoe mount on the end
A monitor mount on the bottom with a 1/4"-20 male thumbwheel and tension-based 165° tilt adjustment; the thumbwheel has slots for further tightening it using the included Allen wrench
A 1/4"-20 thread on the side, on the very end, allowing attachment of short magic arms and other accessories
In the middle of this Monitor Mount, there are two 1/4"-20 threaded holes on top and another shoe mount on the bottom

SmallRig 3026 Specs

General
Compatibility

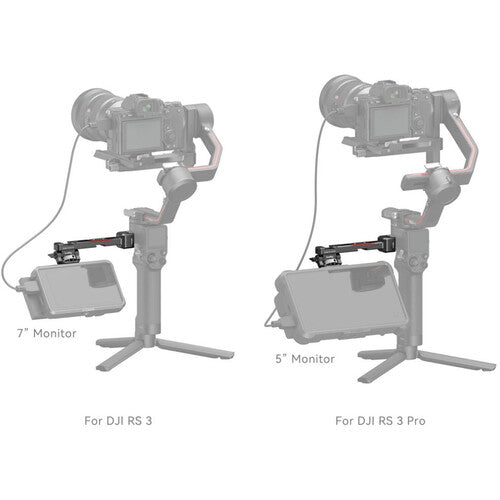

DJI RS 2 Gimbal Stabilizer / RSC 2 Gimbal Stabilizer / RS 3 Gimbal Stabilizer / RS 3 Pro Gimbal Stabilizer / RS 3 Mini Gimbal Stabilizer / RS 4 Gimbal Stabilizer / RS 4 Pro Gimbal Stabilizer
Adjustments
165° Rotation
Physical
Mounting
1x NATO Clamp
Multiple 1/4"-20 Threads
2x Shoe Mount
1x 1/4"-20 Screw
Load Capacity
3.3 lb / 1.5 kg
Color
Black
Material of Construction
Aluminum
Dimensions
5.3 x 2.1 x 1.7" / 134 x 52.5 x 42 mm
Weight
4 oz / 113 g
Packaging Info
Package Weight
0.37 lb
Box Dimensions (LxWxH)
8 x 2.8 x 2.1"

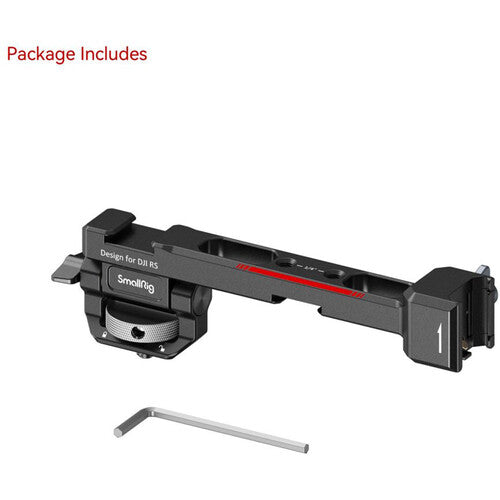

In The Box SmallRig Monitor Mount with NATO Clamp for Select DJI RS Series Gimbals, Allen Wrench, Limited 2-Year Manufacturer Warranty
MFG Part# 3026B
Condition New
