Short description
Quick Overview
- Compact size
- 6,600 mAh / 95 Wh capacity
- Supports up to 6A of continuous draw
- Onboard 4-LED power gauge indicate remaining battery capacity
- 2-Pin D-Tap port for charging and power
- USB-A port for charging other devices

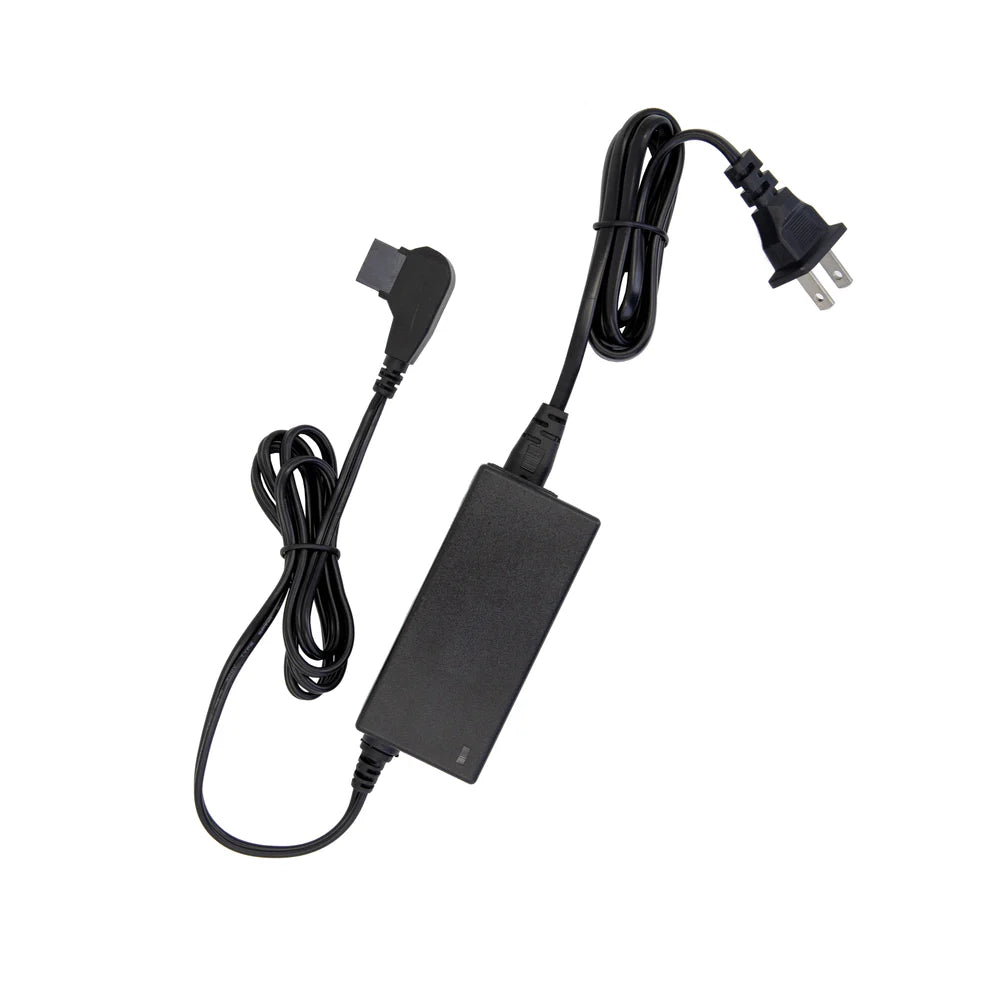

- Kit includes D-Tap charger
- Built-in protection circuitry
Product Description

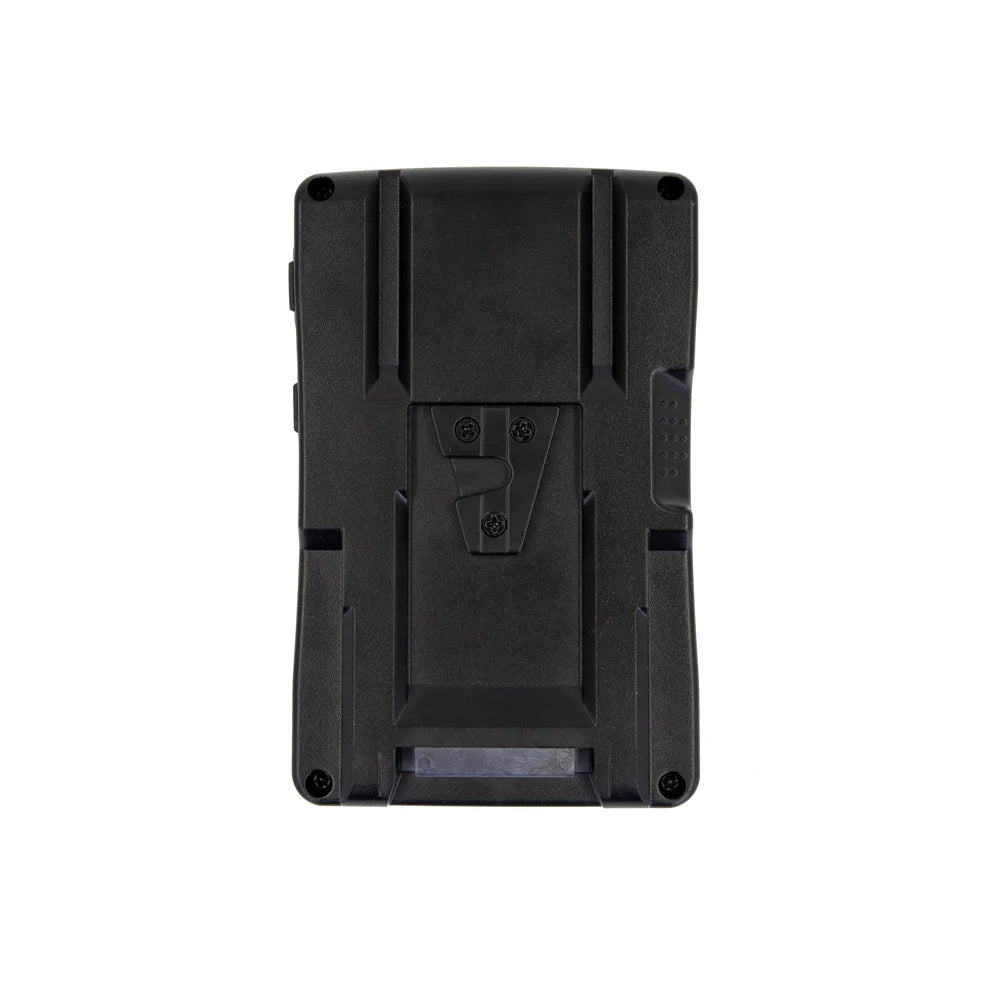

A compact 95 Wh lithium-ion battery & charger kit that is compatible with V-Mount & D-Tap devices.
The ProMaster 8046 Compact V-Mount Battery Kit is a small yet high capacity (14.4V / 6,600 mAh / 95 Wh) li-ion battery with D-Tap and USB-A ports. It supports a continuous draw up to 6A at a nominal 14.4 V. This kit includes a D-Tap charger for convenience and value.
The battery sports an industry standard D-Tap port which can be used for charging and for powering other devices using a compatible cable. In addition to the D-Tap port, this battery also has a USB-A (5V 2.1A) power output port for charging or powering compatible devices.
An on-board 4-LED power gauge displays the remaining battery capacity and is easily activated with the push of a button.
Over-charge, over-discharge, over-current, and over-temperature protection circuitry is built-into this battery for safety.
At 95Wh this battery meets the safety standards for most airline flights.
* Please be sure to check the exact regulations for any travel you intend to take this battery on.
| Battery Specifications | |
|---|---|
| Nominal Voltage | 14.4 V |
| Capacity | 6,600 mAh / 95 Wh |
| Maximum Load | 6 A continuous draw (via main contacts or D-Tap) |
| Cut-off Discharge Voltage | 11.0 V |
| Charging Voltage | 16.8 V |
| Charging Current | 1.95 A standard charging / 3.25 A quick charging |
| Maximum Charging Current | 6 A |
| USB-A Port Output | 5 V / 2.1 A |
| USB Cut-off Discharge Current Protection | 2.5 - 3.2 A |
| D-Tap Maximum Discharge Current | 14.28 A (16.8 V) - 24 A (10 V) |
| D-Tap Charging Voltage | 16.8 V |
| D-Tap Maximum Charging Current | 6 A |
| Dimensions | 152 mm x 95 mm x 40 mm |
| Weight | 588 g / 1 lb 4 3/4 oz |
| Charger Specifications: | |
| Input | 100 - 240 V AC 50/60 Hz |
| Output charging voltage | 16.8 V DC |
| Output charging current | 2.0 A |
| In The Box | ProMaster Compact V-Mount Battery Kit with D-Tap & USB-A (95Wh) |
|---|---|
| MFG Part# | 8046 |
| Condition | New |
