Short description
Quick Overview
- Load Capacity: 50 lb
- Height: 5.5"
- Weight: 2 lb
- Arca-Type Compatible
- Lock Knob Mechanism for Clamp
- 360° Pan with Independent Pan Lock
- Rotating Slot has 90° Multi-Angle Tilts
- CNC-Machined Aluminum and Steel
- Laser-Engraved Millimeter Scale on Clamp
Product Description

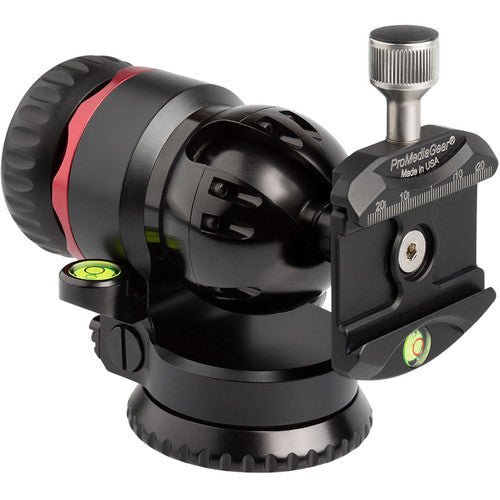

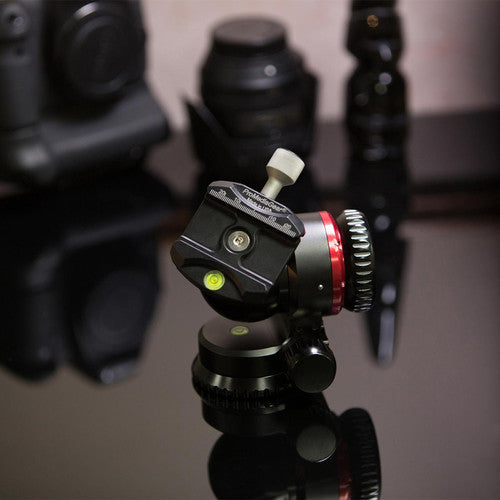

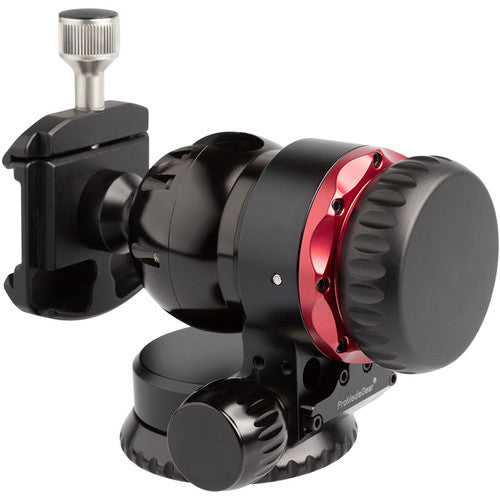

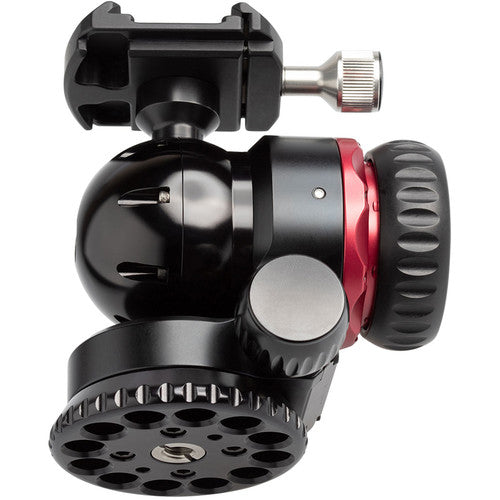

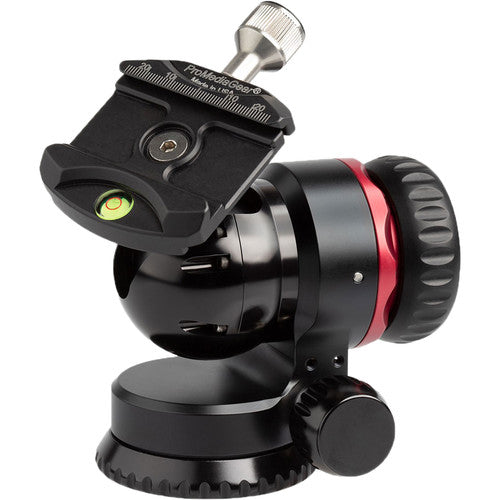

ProMediaGear BH1 Sputnik Arca-Type Ball Head
The BH1 Sputnik Arca-Type Ball Head from ProMediaGear is a 2 lb, CNC-machined aluminum head with durable internal steel components and a sleek black anodized finish. Unlike traditional ball heads, it features a rotating slot design, allowing the clamp to move freely in any 90° multi-angle direction once the large main locking knob is released.
Standing 5.5" tall, the head offers full 360° panning with an independent pan lock and supports loads of up to 50 lb. Its clamp secures the included PBX3 quick release plate using a robust aluminum screw knob mechanism, while the laser-engraved millimeter scale ensures precise positioning and repeatability.
Key Features
-
CNC-machined aluminum with internal steel components
-
Unique rotating slot enables 90° multi-angle clamp movement
-
Independent pan lock for smooth 360° rotation
-
Supports up to 50 lb of gear
-
Includes PBX3 quick release plate
-
Clamp features aluminum screw knob and engraved millimeter scale for accuracy
ProMediaGear BH1 Sputnik Specs
| Camera Mounting | 1/4"-20 Screw (Quick Release Plate: Arca-Type) |
| Head Type | Ball Head |
| Drag Control | No |
| Load Capacity | 50 lb / 22.68 kg |
| Weight | 2 lb / 0.91 kg |
| Camera Mounting | 1/4"-20 Screw (Quick Release Plate: Arca-Type) |
| Head Type | Ball Head |
| Base Mount | Flat Base with 3/8"-16 Female |
| Counter Balance | No |
| Drag Control | No |
| Independent Pan Lock | Yes |
| Vertical Tilt | 90° |
| Lateral Tilt | No |
| Load Capacity | 50 lb / 22.68 kg |
| Bubble Level | Yes |
| Weight | 2 lb / 0.91 kg |
| Package Weight | 2.545 lb |
| Box Dimensions (LxWxH) | 5.6 x 5.2 x 5.1" |
| In The Box |
|
|---|---|
| MFG Part# | BH1 |
| Condition | New |
