Short description
Quick Overview
- Two Lights with Rolling Case
- Output: 92,310 Lux at 3.3' per Light
- 5600K CCT; Green-Magenta Adjustment
- AC or Battery Power
- Onboard, DMX & App Control
- CRI 96 | TLCI 97
- Active Cooling, Four Fan Modes
- 5/8" & 1-1/8" Pins, Bowens Mount
- 11 Special Effects & OLED Screen
- Includes Reflectors & Control Units
Product Description

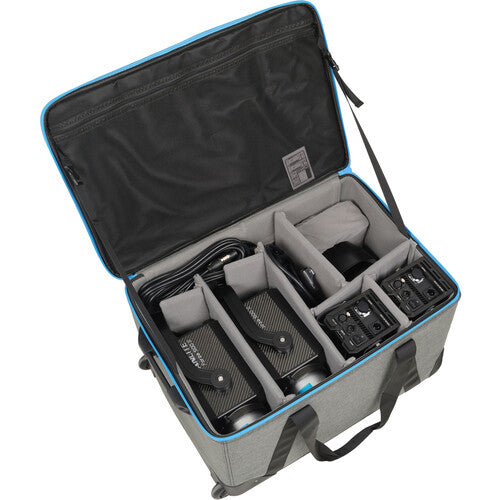

Adopting the same powerful output and compact form of the original Forza 500, Nanlite has introduced the Forza 500 II Daylight LED Monolight Travel 2-Light Kit. This kit includes two Forza 500 II monolights, each with a 55° reflector, a control unit with V-mount battery plates, a power cord, and a super clamp. A carry case with built-in wheels is supplied to store and transport your lights.
Featuring a daylight-balanced color temperature of 5600K with a green-magenta shift by +/- 80, the Forza 500 II is dimmable from 0 to 100% in 0.1% increments so you can achieve the precise intensity needed for your video and photo productions. Each light comes with Bluetooth and 2.4 GHz for wireless control, DMX/RDM capability, and four fan modes for speed adjustments or absolute silence. The Forza 500 II offers power options to efficiently run via AC power or on optional V-mount batteries.
Bright Output
With the included 55° reflector, the Forza 500 II outputs up to 92,310 lux at 3.3' (5600K).
Special Effects
The light offers 11 built-in customizable effects that can be saved as presets using the free NANLINK app.
Green-Magenta Adjustment
In shooting situations where you need to match other light sources or achieve a specific look, it can be extremely helpful to adjust the green-to-magenta shift for color correction. The Forza 500 II allows you to tweak the color by +/- 80 to get there. This ability is made possible by the light's LED source.
Four Fan Modes
Four fan modes enhance speed control according to your needs. The fan can also be turned off completely when absolute silence is needed.
- Smart, full speed, low speed, and off modes
- 15% maximum output when turned off
Control Unit & Battery Power
Optimized for use in the studio or on location, the light's control unit is equipped with easy-access side battery plates that accommodate V-mount batteries. The Forza 500 II runs on 26V/14.8V V-mount batteries or AC power for easy operation in any location regardless of power availability.
- Fanless control unit
- Control unit's lock button prevents accidental setting changes
- Includes 19.8' power cable and 9.8' head cable
- A robust quick release clamp is included for mounting the control unit
- The versatile clamp is compatible with round or square stands and trusses
Onboard, DMX & App Control
The control unit features a convenient OLED display plus onboard buttons and knobs for precise and easy local control, but the light can also be controlled remotely.
- From your smartphone via Bluetooth with the free NANLINK app for iOS and Android
- Built-in 2.4 GHz lets you use the separately available WS-RC-C2 handheld remote control or the WS-TB-1 transmitter box for larger setups
- Locking DMX/RDM ports facilitate advanced control and enable the light to be quickly adopted into any DMX-controlled environment
Multiple Mounting Possibilities
The light has a curved rotating yoke with a one-sided lock and forward articulation. It allows 360° rotation to provide a greater tilting range with optional large modifiers. It also features an incorporated umbrella holder to expand your light-shaping options. Additionally, the light's Bowens mount capability makes the Forza 500 II compatible with a wide range of modifiers.
Additional Benefits & Refinements
- Fully dimmable from 0 to 100%
- USB port allows firmware updates and supplies power for optional wireless DMX receivers
- Durable construction
Nanlite Forza 500 II Specs
Key Specs
| Item Type | 2x LED Monolight |
| Included Light Modifier | 2x Reflector |
| Included Storage Case | 1x Case (Fits Two Lights) |
| Photometrics | 5600K: 2094 fc / 22,550 Lux at 3.3' / 1 m 8575 fc / 92,310 Lux at 3.3' / 1 m (with Reflector) 252 fc / 2715 Lux at 9.8' / 3 m 104 fc / 1120 Lux at 16.4' / 5 m |
| Color Temperature | 5600K |
| Color Modes | Daylight |
| Color Accuracy Standard | CRI 96 TLCI 97 |
| Dimming | Built-In Dimmer • 0 to 100% |
| Front Accessory Mount | Bowens S |
| Wireless Remote Control Type | Bluetooth Radio/RF *Remote Not Included |
| Power Source | AC Power (Cable Included) *Requires Power Supply/Controller (Included) Battery (Not Included) *Requires Power Supply/Controller (Included) |
| Battery Plate Type | 2x V-Mount (Built-In) |
| Battery | 2x V-Mount Rechargeable, 14.8 to 26 VDC (Not Included) |
| AC Input Power | 110 to 240 VAC, 50 / 60 Hz |
| Power Consumption | 560 W (Maximum) |
| Fixture Mounting | 1x 5/8" Receiver |
Light Fixture
| Item Type | 2x LED Monolight |
| Included Light Modifier | 2x Reflector |
| Included Storage Case | 1x Case (Fits Two Lights) |
| Photometrics | 5600K: 2094 fc / 22,550 Lux at 3.3' / 1 m 8575 fc / 92,310 Lux at 3.3' / 1 m (with Reflector) 252 fc / 2715 Lux at 9.8' / 3 m 104 fc / 1120 Lux at 16.4' / 5 m |
| Color Temperature | 5600K |
| Color Modes | Daylight |
| Color Accuracy Standard | CRI 96 TLCI 97 |
| Dimming | Built-In Dimmer • 0 to 100% |
| Cooling System | Fan |
| Umbrella Mount | Yes |
| Front Accessory Mount | Bowens S |
Connectivity
| Wireless Remote Control Type | Bluetooth Radio/RF *Remote Not Included |
| Mobile App Compatible | Yes: Android & iOS App Name: NANLINK |
| Wireless Frequency | 2.4 GHz |
Power & I/O
| Power Source | AC Power (Cable Included) *Requires Power Supply/Controller (Included) Battery (Not Included) *Requires Power Supply/Controller (Included) |
| Battery Plate Type | 2x V-Mount (Built-In) |
| Battery | 2x V-Mount Rechargeable, 14.8 to 26 VDC (Not Included) |
| AC Input Power | 110 to 240 VAC, 50 / 60 Hz |
| Inline Switch | No |
| Power Consumption | 560 W (Maximum) |
Mounting
| Yoke Type | Manually-Operated Yoke |
| Fixture Mounting | 1x 5/8" Receiver |
Environmental
| Environmental Protection | No |
General
| Display | OLED (Via Included Power Supply/Controller) |
| Dimensions | 13.9 x 9.1 x 5.6" / 35.3 x 23.1 x 14.2 cm |
| Weight | 8.5 lb / 3.9 kg |
Packaging Info
| Package Weight | 66 lb |
| Box Dimensions (LxWxH) | 27.75 x 19.5 x 17" |
| In The Box | Nanlite Forza 500 II Daylight LED Monolight (Travel 2-Light Kit), 2 x Nanlite Forza 500 II Daylight LED Monolight, 2 x Nanlite Quick Release Super Clamp for Forza 720, 500 II, and 300 II, 2 x Nanlite 55-Degree Reflector for Forza 300 and 500, 2 x Nanlite COB Cap with Bowens Mount for Select LED Monolights, 2 x Power Cable (19.8'), 2 x Head Cable (9.8'), 2 x Control Unit with V-Mount Plates, Rolling Case, Limited 2-Year Manufacturer Warranty, Registration Extension: 1-Year |
|---|---|
| MFG Part# | FORZA5002KIT |
| Condition | New |
