Short description
Quick Overview
- For Studio & Film/TV Production
- Output: 4960 Lux at 3.3' (5600K)
- 5600K; Daylight Control
- 32 x 20"; Multi-Voltage AC Operation
- CRI 95 | TLCI 93
- On-Board Control, Accessory WiFi Remote
- Passive Cooling for Silent Operation
- 0-100% Dimming
- Includes US AC Power Cord
Product Description

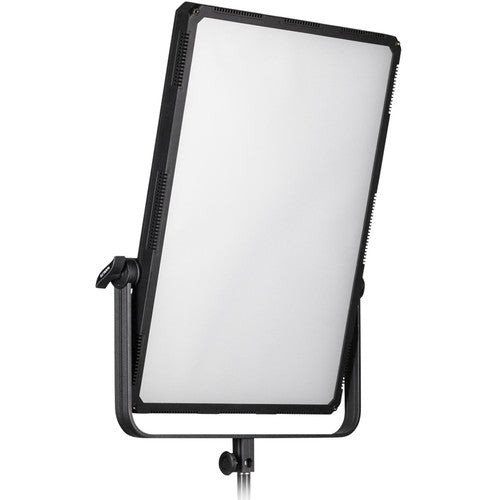

The Compac 200 5600K Studio LED Light Panel from Nanlite is an ideal choice for the studio or location work where color accuracy, control, and flicker-free output that's dimmable from 0 to 100% are of major importance. The Compac's daylight-balanced output is well suited for outdoor work or color-matching HMI fixtures, while its high CRI of 95 is an indicator of faithful, precise color rendering. The Compac can be used worldwide thanks to its 100-240 VAC power supply.
This versatile LED light panel can be controlled wirelessly using the separately available Nanlite RC-1 remote control, or the Nanlite W-2 Wifi Adapter.
Studio Quality Lighting
Compac-Series Studio LED Panels create diffuse, color-accurate studio lighting with minimal set up and zero complications. Ideal for lighting interviews, headshots, still life photography, vlogging, and more.
The Light You Need for the Space You Have
Combining a space-saving design with impressive brightness, Compac series studio LEDs achieve lighting similar to large softboxes but at a fraction of the size and none of the set-up time.
Full Creative Control
Achieve studio-quality results without adding plastic filters or cloth diffusion. Control brightness from 0-100%, while color temperature is set to 5600K for compatibility with other light sources and camera white balance presets.
Consistent Results
An LCD panel shows you exactly what settings you're using, making it easy to fine tune and then recreate them in future so your results will always be easily repeatable.
Nanlite Compac 200 Specs
Key Specs
| Item Type | 1x LED Array LED Light Panel |
| Included Storage Case | No |
| Photometrics | 5600K: 460 fc / 4960 Lux at 3.3' / 1 m* 126 fc / 1359 Lux at 6.6' / 2 m 57 fc / 616 Lux at 9.8' / 3 m |
| Color Temperature | 5600K |
| Color Modes | Daylight |
| Color Accuracy Standard | CRI 95 TLCI 93 |
| Dimming | Built-In Dimmer • 0 to 100% |
| Front Accessory Mount | Proprietary |
| Power Source | AC Power (Cable Included) |
| AC Input Power | 100 to 240 VAC, 50 / 60 Hz |
| Power Consumption | 220 W |
| Fixture Mounting | 1x 5/8" Receiver (Via Yoke Mount) |
Light Fixture
| Item Type | 1x LED Array LED Light Panel |
| Included Filters | Soft Diffusion (Built-In) |
| Included Storage Case | No |
| Lumens | 16,720 (at 5600K) |
| Photometrics | 5600K: 460 fc / 4960 Lux at 3.3' / 1 m* 126 fc / 1359 Lux at 6.6' / 2 m 57 fc / 616 Lux at 9.8' / 3 m |
| Color Temperature | 5600K |
| Color Modes | Daylight |
| Color Accuracy Standard | CRI 95 TLCI 93 |
| Dimming | Built-In Dimmer • 0 to 100% |
| Cooling System | Passive |
| Built-In Flash | No |
| Umbrella Mount | No |
| Front Accessory Mount | Proprietary |
Connectivity
| Mobile App Compatible | No |
Power & I/O
| Power Source | AC Power (Cable Included) |
| Inputs/Outputs | 1x IEC Power Input |
| AC Input Power | 100 to 240 VAC, 50 / 60 Hz |
| Included Adapter / Cable | 1x USA Type-A/B to IEC Cable |
| Inline Switch | No |
| Power Pass-Thru | No |
| Power Consumption | 220 W |
Mounting
| Yoke Type | Manually-Operated Yoke |
| Fixture Mounting | 1x 5/8" Receiver (Via Yoke Mount) |
Environmental
| Environmental Protection | No |
General
| Display | LCD |
| Materials | Plastic |
| Dimensions | 32 x 20 x 4" / 81.3 x 50.8 x 10.2 cm (Fixture) |
| Weight | 13.23 lb / 6 kg |
Packaging Info
| Package Weight | 18 lb |
| Box Dimensions (LxWxH) | 5.5 x 2.34 x 2.34" |
| In The Box | Nanlite Compac 200 Daylight LED Light Panel, AC Power Cord, Limited 1-Year Manufacturer Warranty, Registration Extension: 3-Year (US Only) |
|---|---|
| MFG Part# | 12-2010 |
| Condition | New |
