Short description
Quick Overview
- ±5° Stabilization
- Works Pointed in Any Direction
- Waterproof and Fogproof
- Phase-Coated BAK4 Roof Prisms
- 4.7° Angle of View
- Full Fujinon EBC Multi-Coatings
- Handgrip for Left- or Right-Hand Use
- Optional Haze Eyepiece Filters
- Peel-Down-Type Eyecups
- Uses Batteries or DC Adapter
Product Description

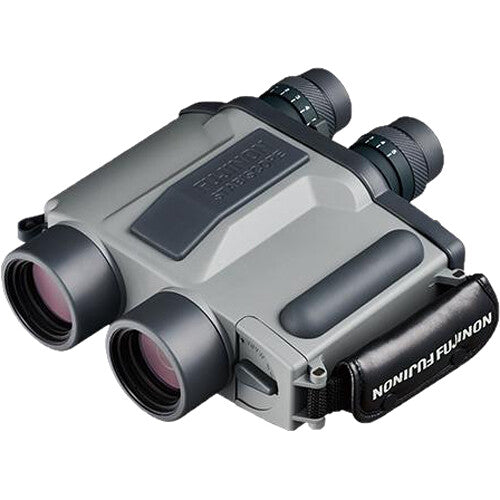

Fujinon 12x40 S1240D Stabiscope Image-Stabilized Binoculars
The Fujinon 12x40 S1240D Stabiscope binoculars feature advanced gyroscopic stabilization, effectively counteracting movement from shaky hands or fast-moving vehicles. Unlike conventional stabilizers, the Stabiscope’s ±5° compensation works along any axis, allowing for stable viewing whether aimed straight up, down, or in any direction—making it an ideal choice for law enforcement, aviation, and marine use.
Exceptional Stability & Optical Performance
- ±5° image stabilization eliminates motion blur in any orientation
- 12x magnification for clear long-distance viewing
- 40mm objective lenses provide bright, high-contrast images
- Phase-coated BAK4 roof prisms ensure sharp details and enhanced clarity
- Fujinon EBC multi-coated optics maximize light transmission for superior color fidelity
- Interpupillary adjustment (60-70mm) for a customized fit
- ±5 dioptric correction for precise focusing
Versatile Power Options
- Compatible with 12-32 VDC electrical systems found in land, sea, and air vehicles
- Can also run on four AA batteries or a single 2CR5 battery for portable use
Rugged & User-Friendly Design
- 100% waterproof and fogproof for all-weather reliability
- Rubber-armored housing for durability and a secure grip
- Ambidextrous design for left- or right-hand use
- Peel-down eyecups for added comfort
- Compatible with optional polarizing and haze filters for enhanced visibility
Perfect for aerial surveillance, marine navigation, and professional field operations, the Fujinon S1240D Stabiscope binoculars deliver unparalleled stabilization, optical precision, and adaptability for the most demanding environments.
Fujinon Stabiscope 12x40 Specs
Key Specs
| Prism Type | Roof (BAK4) |
| Magnification | 12x |
| Objective Lens Diameter | 40 mm |
| Angle of View | 4.7° (Actual) |
| Field of View | 246.7' @ 1000 yd / 82.2 m @ 1000 m |
| Exit Pupil Diameter | 3.3 mm |
Performance
| Magnification | 12x |
| Objective Lens Diameter | 40 mm |
| Angle of View | 4.7° (Actual) |
| Field of View | 246.7' @ 1000 yd / 82.2 m @ 1000 m |
| Minimum Focus Distance | 95.1' / 29 m |
| Exit Pupil Diameter | 3.3 mm |
| Eye Relief | 17 mm |
| Interpupillary Adjustment | 60 to 70 mm / 2.4 to 2.8" |
| Diopter Adjustment | -5 to +5 |
| Focus Type | Individual |
Features
| Fogproof | Yes |
| Environmental Resistance | Water-Resistant (Unrated) |
General
| Battery | 4x AA or 1x 2CR5 |
| Weight | 3.95 lb / 1.79 kg |
Packaging Info
| Package Weight | 10.35 lb |
| Box Dimensions (LxWxH) | 14.1 x 11 x 6.4" |
| In The Box |
|
|---|---|
| MFG Part# | 16330316 |
