Short description
Quick Overview
- For DJI Mic 3 Wireless Mic Systems
- Camera-Mount 4-Channel Receiver Unit
- Dual-Band Wireless, Bluetooth 5.4
- Timecode I/O Support
- AMOLED Touchscreen, Onboard Controls
- 3.5mm Line Out, 3.5mm Headphones Out
- USB-C Audio Adapter
- 10-Hour Battery Runtime
Product Description
DJI Mic 3 Camera-Mount Wireless Receiver
The DJI Mic 3 Camera-Mount Wireless Receiver is a compact, 2-channel unit designed to expand your Mic 3 wireless system or serve as a reliable backup. Supporting both stereo and mono audio, it can pair with up to four transmitters and seven additional receivers, making it ideal for multi-person setups in diverse production environments. With timecode input and output, the receiver streamlines synchronization during postproduction.
Equipped with a 3.5mm TRS output, it records audio directly to your camera, while a dedicated 3.5mm headphone jack enables real-time monitoring. The included USB-C adapter provides direct connection to mobile devices, and compatibility with Sony MI shoes is possible via an optional Mic Series Camera Adapter. Thanks to dual-band wireless (2.4/5.8 GHz) and Bluetooth 5.4, you’ll enjoy stable communication from distances of up to 1312 ft. A built-in AMOLED touchscreen and onboard controls simplify operation, with extended functionality available through the DJI Mimo app. The internal rechargeable battery powers the receiver for up to 10 hours of continuous use.
Key Features
-
2-channel receiver, pairs with up to 4 transmitters + 7 additional receivers
-
Stereo or mono audio channel support
-
Dual-band wireless (2.4/5.8 GHz) + Bluetooth 5.4
-
Camera mounting via built-in shoe adapter
-

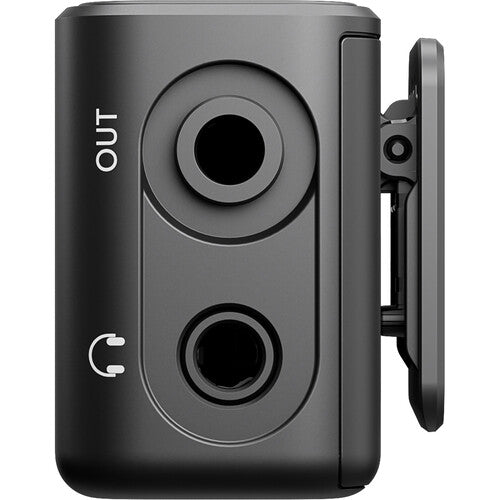

3.5mm TRS audio output + 3.5mm headphone jack
-

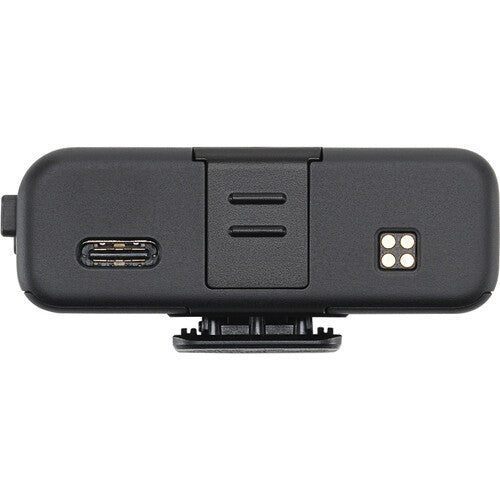

USB-C charging port & audio adapter included
-
Optional adapter for Sony MI shoe compatibility
-
Timecode input/output support
-

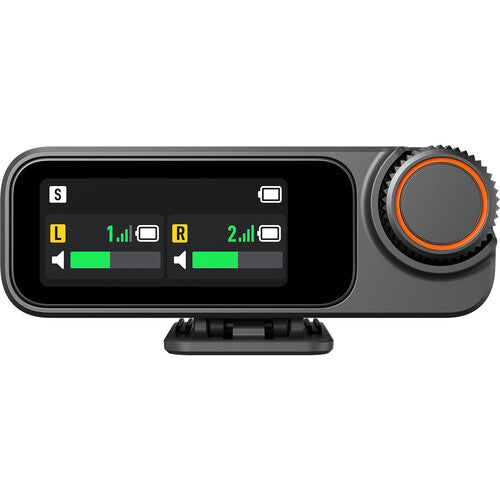

1.1" AMOLED touchscreen with onboard controls
-
Up to 10-hour battery life
DJI CP.RN.00000477.01 Specs
| Wireless Technology | Digital 2.4 GHz / Digital 5.8 GHz / Bluetooth |
| Diversity | Non-Diversity |
| Max Operating Range | 1312.3' / 400 m (Line of Sight) 262.5' / 80 m (with Obstruction) |
| Receiver Type | 1x Camera-Mount |
| Number of Audio Channels | 2 |
| Wireless Technology | Digital 2.4 GHz / Digital 5.8 GHz / Bluetooth |
| Diversity | Non-Diversity |
| RF Frequency Band | 2400 to 24,835 MHz / 5150 to 5850 MHz |
| Max Operating Range | 1312.3' / 400 m (Line of Sight) 262.5' / 80 m (with Obstruction) |
| Max Transmitters per Band | 4 |
| Built-In Recorder | No |
| Timecode Support | Yes |
| Mobile App Compatible | Yes: Android & iOS App Name: DJI Mimo |
| Receiver Type | 1x Camera-Mount |
| Mounting Options | Shoe-Mount (with Included Hardware) USB-C Plug-In (with Included Adapter) |
| Antenna | 1x Internal |
| Number of Audio Channels | 2 |
| Audio I/O | 1x 1/8" / 3.5 mm TRS Unbalanced Output 1x 1/8" / 3.5 mm TRS Headphone Output |
| Network I/O | No |
| USB/Lightning Connectivity | 1x USB-C Female |
| Frequency Response | 20 Hz to 24 kHz |
| Display | OLED |
| Power Requirements | Battery |
| Receiver Battery Type | 1x Built-In Rechargeable - 275 mAh |
| Receiver Battery Life | 10 Hours |
| Battery Charging Time | 50 Minutes |
| AC/DC Power Adapter | No |
| Input Power | 5 VDC |
| Environmental Resistance | No |
| Dimensions | 2.1 x 1.1 x 0.9" / 53.9 x 28.7 x 22 mm |
| Weight | 0.9 oz / 25.1 g |
| Package Weight | 0.255 lb |
| Box Dimensions (LxWxH) | 4.9 x 4.2 x 1.9" |

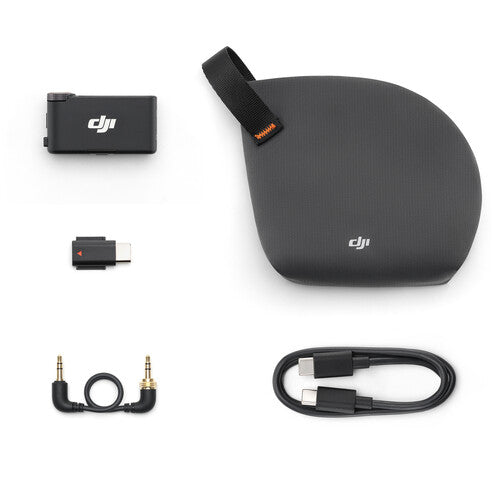

| In The Box |
|
|---|---|
| MFG Part# | CP.RN.00000477.01 |
| Condition | New |
