Short description
Quick Overview
- Compatible with Canon E-TTL / E-TTL II
- Twin-Tube Design & 12 Custom Functions
- Guide Number: 45.9' at ISO 100
- Coverage: 80° Vertical & Horizontal
- LED Focusing Lamps
- Wireless Master TTL Functionality
- Recycle Time: 0.1-5.5 Seconds
- High-Speed & 2nd Curtain Sync
- Runs on 4 AA Batteries
- Attaches to Select Canon Macro Lenses
Product Description

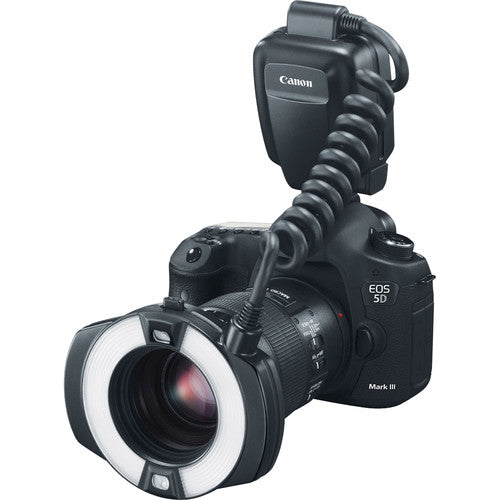

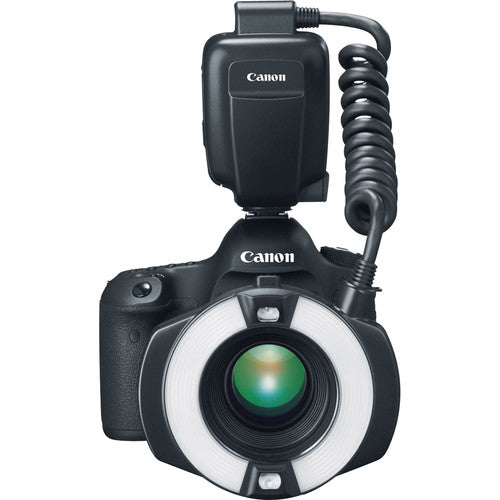

The Canon MR-14EX II Macro Ring Lite Flash is purpose-built for close-up photography with compatible Canon macro lenses. Featuring a guide number of 34' at ISO 100 per side, its dual-tube design allows each flash to fire independently or together, delivering a combined guide number of 46' at ISO 100. Integrated white LED focusing lamps and dual modeling light options help you preview lighting effects with precision.

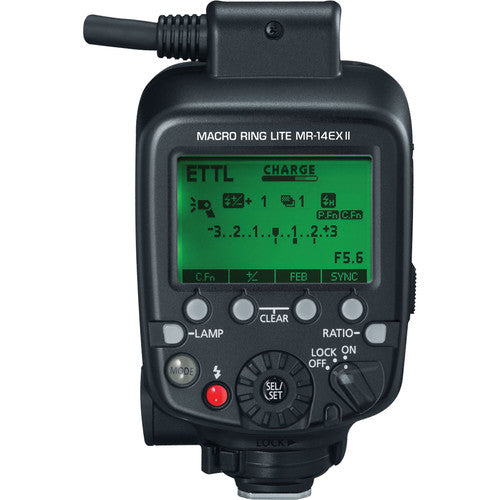

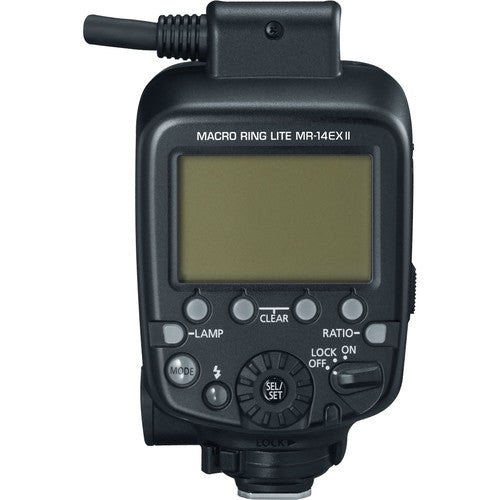

A backlit dot-matrix LCD makes it easy to adjust settings in both bright and low-light environments. The flash offers 12 custom functions and supports wireless E-TTL operation when paired with compatible Speedlite 600EX-RT units. Power options include four AA batteries or an optional CP-E4 battery pack.
The MR-14EX II is compatible with select Canon macro lenses, including the EF 50mm f/2.5 Compact Macro, EF-S 60mm f/2.8 Macro USM, EF 100mm f/2.8 Macro USM, and MP-E 65mm f/2.8 1-5x Macro Photo. When used with the EF 100mm f/2.8L Macro IS USM, a Macrolite Adapter 67 is required, while the EF 180mm f/3.5L Macro USM requires the Macrolite Adapter 72C.
Canon MR-14EX Specs
| Guide Number | 45.93' / 14 m at ISO 100 |
| Recycle Time | Approx. 0.1 to 5.5 Seconds |
| Exposure Control | Canon E-TTL / E-TTL II |
| Secondary Illumination | No |
| Wireless Operation | Optical Pulse (TTL/Manual) Up to 16.4' / 5 m (Master) |
| Internal Power | 4x AA |
| Lens Compatibility | 52mm/58mm/67mm/72mm Filter Threads (via Optional Adapter Ring) |
| Guide Number | 45.93' / 14 m at ISO 100 |
| Effective Range | Up to 16.4' / 5 m at f/2.8 |
| Angle of Coverage | 80° Horizontal 80° Vertical |
| Recycle Time | Approx. 0.1 to 5.5 Seconds |
| Exposure Control | Canon E-TTL / E-TTL II |
| Power Range | 1/1 to 1/128 |
| Secondary Illumination | No |
| Wireless Operation | Optical Pulse (TTL/Manual) Up to 16.4' / 5 m (Master) |
| Wireless Channels | 4 |
| Wireless Groups | 3 |
| Internal Power | 4x AA |
| Mount | Shoe Mount |
| Lens Compatibility | 52mm/58mm/67mm/72mm Filter Threads (via Optional Adapter Ring) |
| Display | LCD |
| Dimensions (W x H x D) | 2.7 x 4.7 x 2.8" / 69.6 x 118.8 x 71.4 mm (Controller) 5.1 x 4.4 x 1.0" / 129.6 x 112.1 x 25.3 mm (Ring) |
| Weight | 1 lb / 453.59 g (without Batteries) |
| Package Weight | 2.08 lb |
| Box Dimensions (LxWxH) | 8.8 x 6.7 x 6.4" |
| In The Box |
|
|---|---|
| MFG Part# | 9389B002 |
| Condition | New |
