Short description
Quick Overview
- Compact On-Camera 5" Touchscreen Monitor
- High 1500 cd/m² Brightness
- 4K HDR Support, HDMI Input
- USB-C PD Power Input/Output
- Remote Calibration LANC Jack
- L-Series Battery Plate on Rear
- SD Card Slot
- USB/HDMI Cable Clamp
Product Description

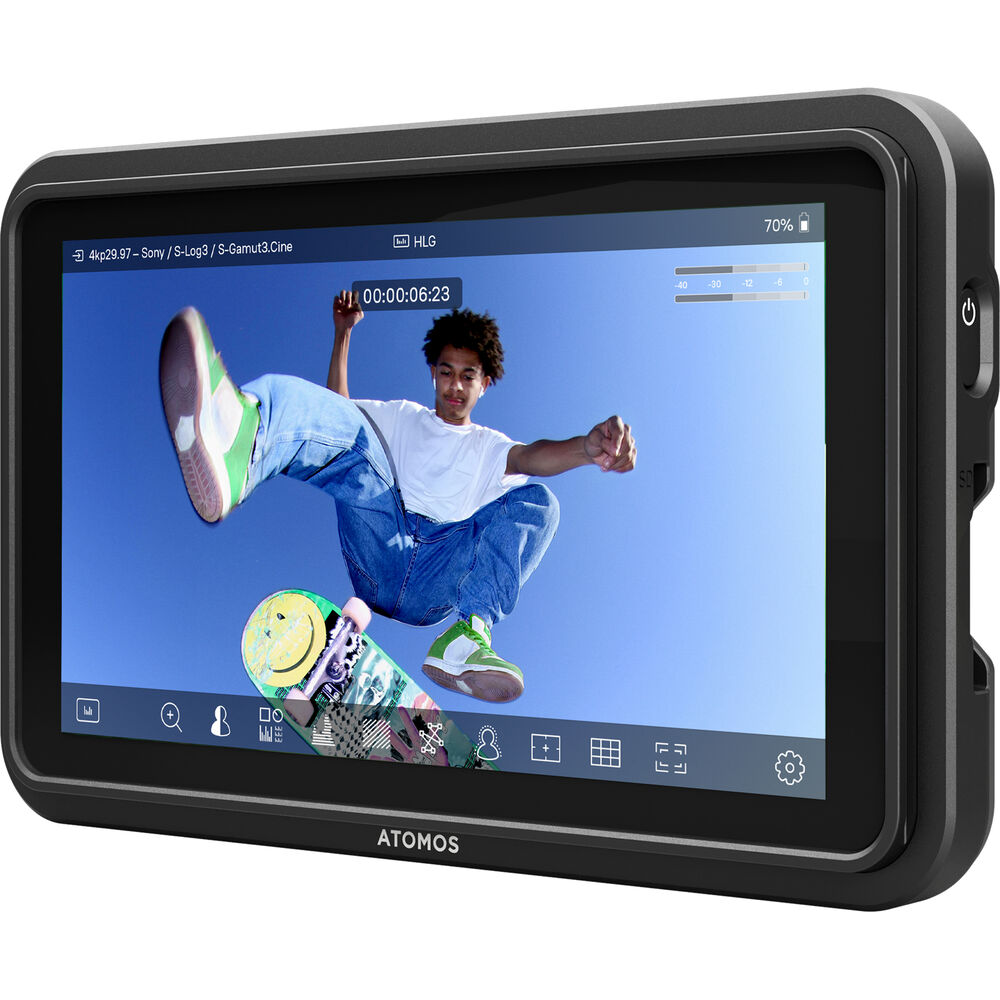

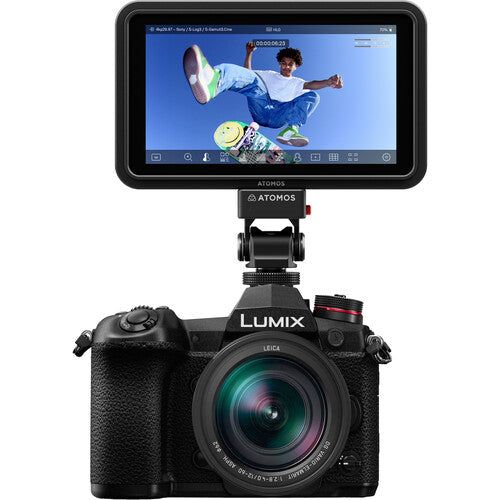

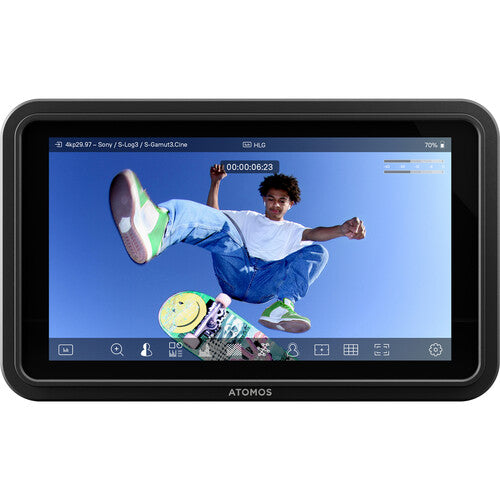

Atomos Shinobi GO 5" Touchscreen HDR Monitor: A Budget-Friendly, Bright On-Camera Display
Enhance your compact camera setup with the Shinobi GO 5" Touchscreen HDR Video/Photo Monitor from Atomos—a bright, cost-effective on-camera monitoring solution. Featuring a 5" IPS display with 1920 x 1080 resolution, edge-lit backlighting, 3D LUT support, and 1500 cd/m² brightness, it ensures clear visuals in any lighting condition. The HDMI 1.4 input supports video signals up to UHD 4K, and an array of built-in image tools enhances your shooting experience.
AtomOS & Advanced Image Tools
The latest AtomOS interface offers an intuitive layout with professional tools like false color, waveforms, zebras, and histogram to help you achieve perfect exposure.
Ultra-Bright Touchscreen Display
With a 1500 cd/m² peak brightness, the 5" touchscreen remains highly visible in both indoor and bright outdoor environments.
Versatile Input Support
The HDMI 1.4 input allows monitoring of signals at various resolutions and frame rates, supporting up to UHD 4K30 and 1080p60.
HDR & LUT Compatibility
Monitor your camera's Log output in HDR with HLG and PQ modes, or upload up to eight custom LUTs to preview your shots with personalized color grading.
Frame Guides for Every Format
Built-in cinema-style and social media frame guides help you compose shots effortlessly, with aspect ratio presets including 2.41, 2.35, 1.91, 16:9, 9:16, 4:5, 1:1, and more.
Lightweight, Anti-Twist Mounting Design

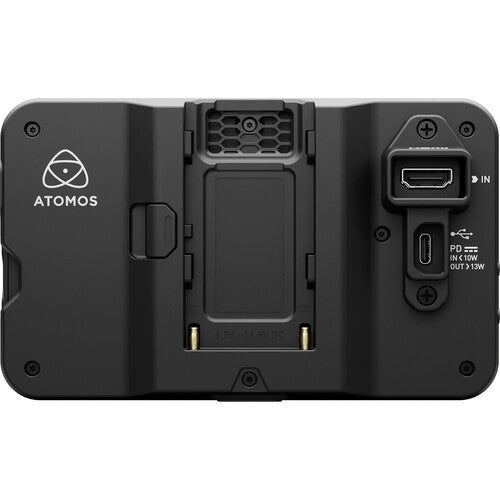

Designed for portability, the slim form factor includes locating holes and 1/4"-20 threads for secure, anti-twist mounting. The centrally placed L-series battery plate improves balance and maneuverability.
Flexible Power Options
Power the Shinobi GO using an L-series/NP-F battery, an optional USB-C PD charger, or via USB-C PD 13W output, which can also charge and power your camera while enabling camera control.
Remote Calibration for Accuracy
Calibrate your monitor remotely using Atomos Calibrator software on Windows or macOS, with support for Calibrite ColorChecker Display Pro and Display Plus+.
Included Accessories for Secure Connections

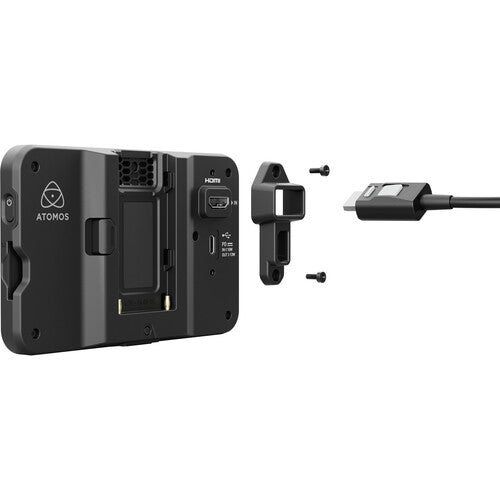

The included HDMI/USB-C locking adapter allows you to use Atomos' new line of locking cables to prevent disconnecting or pulling. The included mount allows you to swivel and tilt the monitor.
Atomos Shinobi GO Specs
| Display Size | 5.2" / 13.2 cm |
| Native Resolution | 1920 x 1080 |
| Touchscreen | Yes |
| HDR Support | Yes, Hybrid Log Gamma |
| Video I/O | 1x HDMI 1.4 Input |
| Media/Memory Card Slot | Single Slot: SD/SDHC/SDXC (UHS-I) [LUT/Firmware Update Only] |
| Video Format | HDMI (8/10-Bit 4:2:2) UHD 4K: 30/29.97/25/24/23.98 1080p: 60/59.94/50/29.97/25/24/23.98 1080i: 60/50 720p: 60/59.94/50 |
| Battery | 1x L-Series Mount on Fixed Plate |
| Panel Type | IPS-Type LCD |
| Display Size | 5.2" / 13.2 cm |
| Native Resolution | 1920 x 1080 |
| Aspect Ratio | 16:9 |
| Viewing Angle | Horizontal: 178° Vertical: 178° |
| Touchscreen | Yes |
| Maximum Brightness | 1500 nits / cd/m2 |
| Color Support | 1.07 Billion Colors (8-Bit+FRC) |
| HDR Support | Yes, Hybrid Log Gamma |
| Color Gamut | 100% Rec. 709 |
| LUT Support | Yes |
| Image Controls | Blue Only, False Color, Focus Peaking, Histogram, Image Flip, Pixel-to-Pixel Zoom, RGB Parade, Screen Markers, Vectorscope, Waveform, Zebra |
| Video I/O | 1x HDMI 1.4 Input |
| Embedded Audio | HDMI: 2-Channel |
| Audio I/O | 1x 1/8" / 3.5 mm Headphone Output |
| Built-In Speaker | No |
| Power I/O | 1x USB-C (16.8 VDC) Input/Output |
| Other I/O | 1x 2.5 mm (Calibration) Input/Output |
| Media/Memory Card Slot | Single Slot: SD/SDHC/SDXC (UHS-I) [LUT/Firmware Update Only] |
| Wi-Fi | No |
| Bluetooth | No |
| Mobile App Compatible | No |
| Video Format | HDMI (8/10-Bit 4:2:2) UHD 4K: 30/29.97/25/24/23.98 1080p: 60/59.94/50/29.97/25/24/23.98 1080i: 60/50 720p: 60/59.94/50 |
| Gamma Curve | Canon Log, Canon Log 2, Canon Log 3, FUJIFILM F-Log, FUJIFILM F-Log 2, HDR-HLG, HDR-PQ, JVC J-Log, Nikon N-Log, Panasonic V-Gamut, Panasonic V-Log, Rec709, Rec2020, Sony S-Log, Sony S-Log 2, Sony S-Log 3, V-Log |
| Input Power | 6 to 16.8 VDC |
| Battery | 1x L-Series Mount on Fixed Plate |
| Tripod/Accessory Mounting | Bottom 1x 1/4"-20 Female |
| Environmental Resistance | No |
| Operating Conditions | Up to 104°F / 40.0°C |
| Dimensions | 5.9 x 3.6 x 0.8" / 151 x 91.5 x 20.8 mm |
| Weight | 7.4 oz / 210.00 g |
| In The Box |
|
|---|---|
| MFG Part# | ATOMSHB004 |
| Condition | New |
