Short description
Quick Overview
- 1920 x 1080 IPS Touchscreen, 4K60 I/O
- All Codecs + NDI License Preloaded
- Locking HDMI 2.0 Input/Output
- Records to CFexpress Type B Slot, USB-C
- Camera Control, Touch to Focus
- 1500 cd/m² Brightness
- Capture up to 6K30 ProRes RAW Video
- W-Fi Firmware Updates
- Updated AtomOS Linux Operating System
- L-Series Battery Slot, Tally Light
Product Description

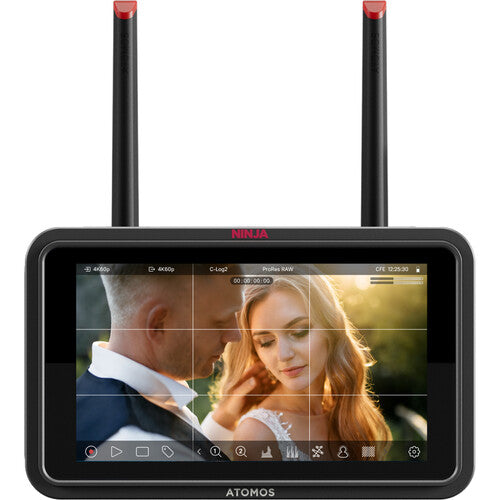

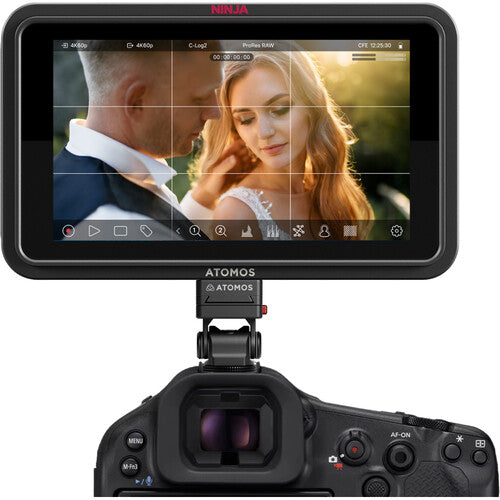

Designed as the HDMI-focused counterpart to the Ninja TX, the Atomos Ninja TX GO 5.2" HDMI Wi-Fi-Enabled Camera Monitor/Recorder is a compact, on-camera solution suited for a wide range of production environments. It introduces several upgrades, including HDMI 2.0 input/output, camera control with touch-to-focus, built-in Connect technology for Wi-Fi streaming and direct uploads, a brighter 1500 cd/m² touchscreen, and support for 6K30 ProRes RAW recording. It also records to CFexpress Type B or via USB-C, features a tally light, includes an NDI/HX3 license, and comes with all major codecs—ProRes RAW, DNx, and H.265—pre-installed.

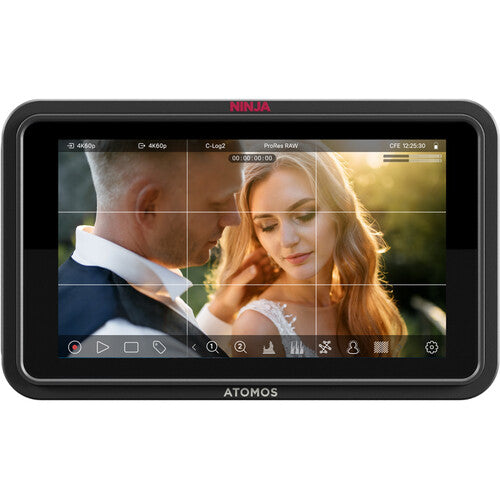

5.2" Touchscreen Display
The 5.2" IPS touchscreen offers Full HD (1920 x 1080) resolution with a bright 1500 cd/m² output, ensuring clear visibility even in daylight. With 8/10-bit color processing, HDR support, Rec.709 color space, and compatibility with Calibrite ColorChecker Display Pro/Plus, it delivers accurate and reliable color monitoring.
Updated Operating System
Powered by the redesigned AtomOS Linux platform, the Ninja TX GO provides a more streamlined interface, enhanced tools, and improved efficiency with cooler performance.
Integrated Wireless Features
With AtomX Connect functionality built in, the Ninja TX GO expands connectivity options. Its included license allows full integration into NDI workflows, functioning as either a source or receiver for high-quality, low-bandwidth video streaming across compatible networks.
Camera-to-Cloud Workflow
The built-in Camera to Cloud (C2C) capability enables direct uploads from the monitor-recorder to cloud platforms such as ATOMOSphere, Adobe Frame.io, and Dropbox—no additional hardware required.
Advanced Color & Metadata Support
The Ninja TX GO supports log formats from major camera brands, including Sony, ARRI, RED, Canon, and others. Users can load custom 3D LUTs and output HDR conversions in formats like Log, HLG, PQ, and Dolby Vision. It also records detailed metadata such as white balance, ISO, shutter speed, aperture, and more.

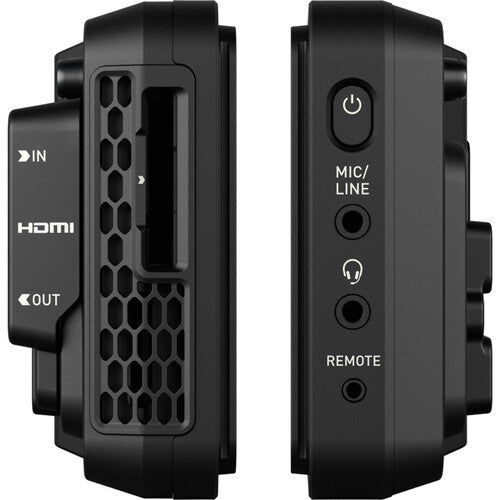

HDMI Input/Output
- HDMI input supports up to 6K30, 4K60, and 1080p120
- Loop-through output allows signal pass-through to additional devices like external monitors or streaming encoders

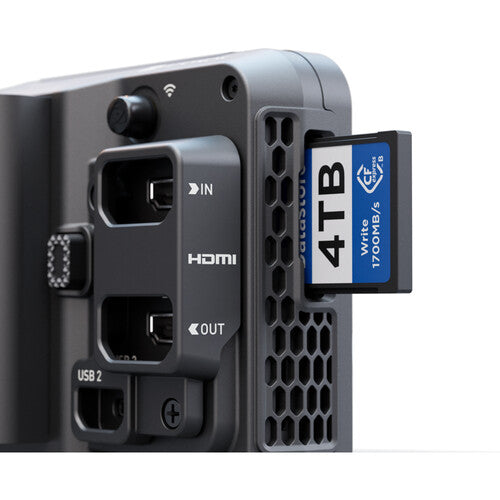

Recording & USB Functionality
Equipped with a CFexpress Type B slot and dual USB-C ports, the Ninja TX GO supports high-speed recording using PCIe/NVMe protocols. USB-C also enables calibration, LUT uploads, audio device integration, and firmware updates. With the AtomOS 12.2.1 update, it supports ProRes RAW recording from cameras like the Canon EOS R6 Mark III at resolutions up to 6960 x 3672p30.

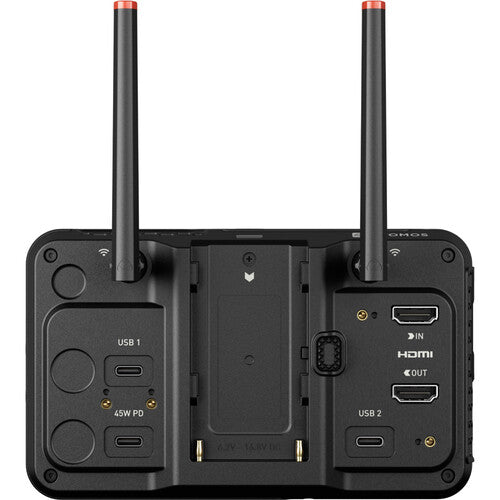

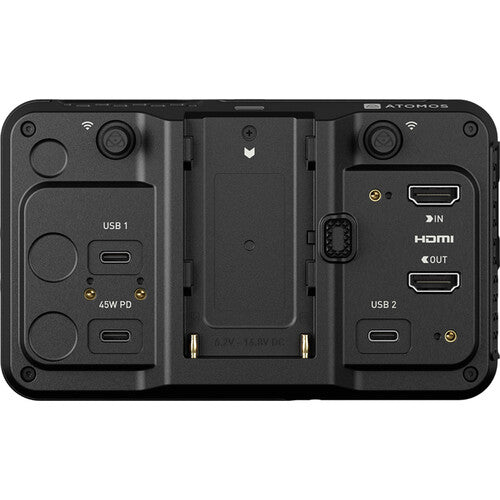

Flexible Power Options
- Compatible with NP-F L-series batteries via rear battery plate
- Optional battery eliminator for continuous DC power
- USB-C port supports 30W Power Delivery
Comprehensive Monitoring Tools
The Ninja TX GO includes a full suite of monitoring tools for precise control over focus, exposure, and framing. Features include focus peaking, zoom modes, zebras, false color (ARRI and EL Zone), frame guides, safe areas, grid overlays, waveform, RGB parade, vectorscope, and LUT support. It also offers anamorphic de-squeeze for proper image preview when using anamorphic lenses.
Control & Operation
- Touchscreen interface with multifunction control buttons
- Auto HDMI camera trigger compatible with Canon and Sony cameras
- LANC control available via optional USB-C to serial cable
- Camera control features enabled via firmware updates
Compact yet powerful, the Ninja TX GO delivers advanced monitoring, recording, and connectivity tools in a portable design suited for modern production workflows.
Atomos Ninja TX GO Specs
| Display Size | 5.2" / 13.2 cm |
| Native Resolution | 1920 x 1080 |
| Touchscreen | Yes |
| HDR Support | Yes: Hybrid Log Gamma |
| Video I/O | HDMI |
| Media/Memory Card Slot | Single Slot: CFexpress Type B [Record/LUT/Firmware] |
| Video Format | HDMI (8/10/16-Bit 4:2:2) 6K Raw: 60/30 3.5K Raw: 60 DCI 4K: 60/59.94/50/30/29.97/25/24/23.98 UHD 4K: 60/59.94/50/30/29.97/25/24/23.98 1080p: 120/100/60/59.94/50/30/29.97/25/24/23.98 1080PsF: 30/29.97/25/24/23.98 1080i: 60/59.94/50 720p: 60/59.94/50 |
| Battery | 1x L-Series Mount on Fixed Plate |
| Power Consumption | 30 W |
| Panel Type | IPS-Type LCD |
| Display Size | 5.2" / 13.2 cm |
| Native Resolution | 1920 x 1080 |
| Aspect Ratio | 16:9 |
| Touchscreen | Yes |
| Maximum Brightness | 1500 nits / cd/m2 |
| Color Support | 1.07 Billion Colors (8-Bit+FRC) |
| HDR Support | Yes: Hybrid Log Gamma |
| Color Gamut | 100% Rec. 709 |
| LUT Support | Yes |
| Image Controls | Anamorphic De-Squeeze, Blue Only, False Color, Focus Peaking, Image Flip, OSD Flip, RGB Parade, Screen Markers, Vectorscope, Waveform, Zebra |
| Antenna I/O | 2x RP-SMA |
| Video I/O | 1x HDMI 2.0 Input 1x HDMI 2.0 Output |
| Embedded Audio | HDMI/IP/NDI/USB |
| Audio I/O | 1x 1/8" / 3.5 mm Input 1x 1/8" / 3.5 mm Headphone Output |
| Built-In Speaker | No |
| Power I/O | 1x USB-C (16.8 VDC) Input |
| Other I/O | 2x USB-C Input/Output [Shared with Firmware/LUT Upload/Record/Power] 1x 2.5 mm (LANC) Input |
| Media/Memory Card Slot | Single Slot: CFexpress Type B [Record/LUT/Firmware] |
| Wi-Fi | Wi-Fi 6E (802.11ax); Dual-Band (2.4 & 5 GHz) |
| Bluetooth | No |
| Mobile App Compatible | Yes: iOS Only App Name: AtomRemote |
| Video Format | HDMI (8/10/16-Bit 4:2:2) 6K Raw: 60/30 3.5K Raw: 60 DCI 4K: 60/59.94/50/30/29.97/25/24/23.98 UHD 4K: 60/59.94/50/30/29.97/25/24/23.98 1080p: 120/100/60/59.94/50/30/29.97/25/24/23.98 1080PsF: 30/29.97/25/24/23.98 1080i: 60/59.94/50 720p: 60/59.94/50 |
| Audio Format | 24-Bit |
| Wireless Video Compression | Compressed |
| Timecode Support | Yes |
| Pulldown Conversion | 2:2, 3:2 |
| Camera Trigger | HDMI |
| Pre-Roll Record | Full HD: 8 Seconds 4K: 2 Seconds |
| Encoding Formats | x DNxHD 36, 145, 220x DNxHR HQ, HQX, LB, SQ ProRes 422, 422 HQ, LT, Raw, Raw HQ H.265 420, 422, HQ, LQ, MQ |
| Maximum Audio Tracks | 8 |
| Metadata Tagging | Yes |
| Reference Input | No |
| Input Power | 6.2 to 16.8 VDC |
| Battery | 1x L-Series Mount on Fixed Plate |
| Power Consumption | 30 W |
| Tripod/Accessory Mounting | 1x ARRI Anti-Twist 1/4"-20 2x 3/8"-16 Female |
| Environmental Resistance | No |
| Operating Conditions | Up to 104°F / 40.0°C |
| Material of Construction | Aluminum, Plastic |
| Dimensions | 5.9 x 3.6 x 1.4" / 151 x 92 x 36 mm |
| Weight | 14.1 oz / 400.00 g |
| Package Weight | 1.595 lb |
| Box Dimensions (LxWxH) | 8.2 x 5.1 x 3" |
| In The Box |
|
|---|---|
| MFG Part# | ATOMNJTX02 |
| Condition | New |
