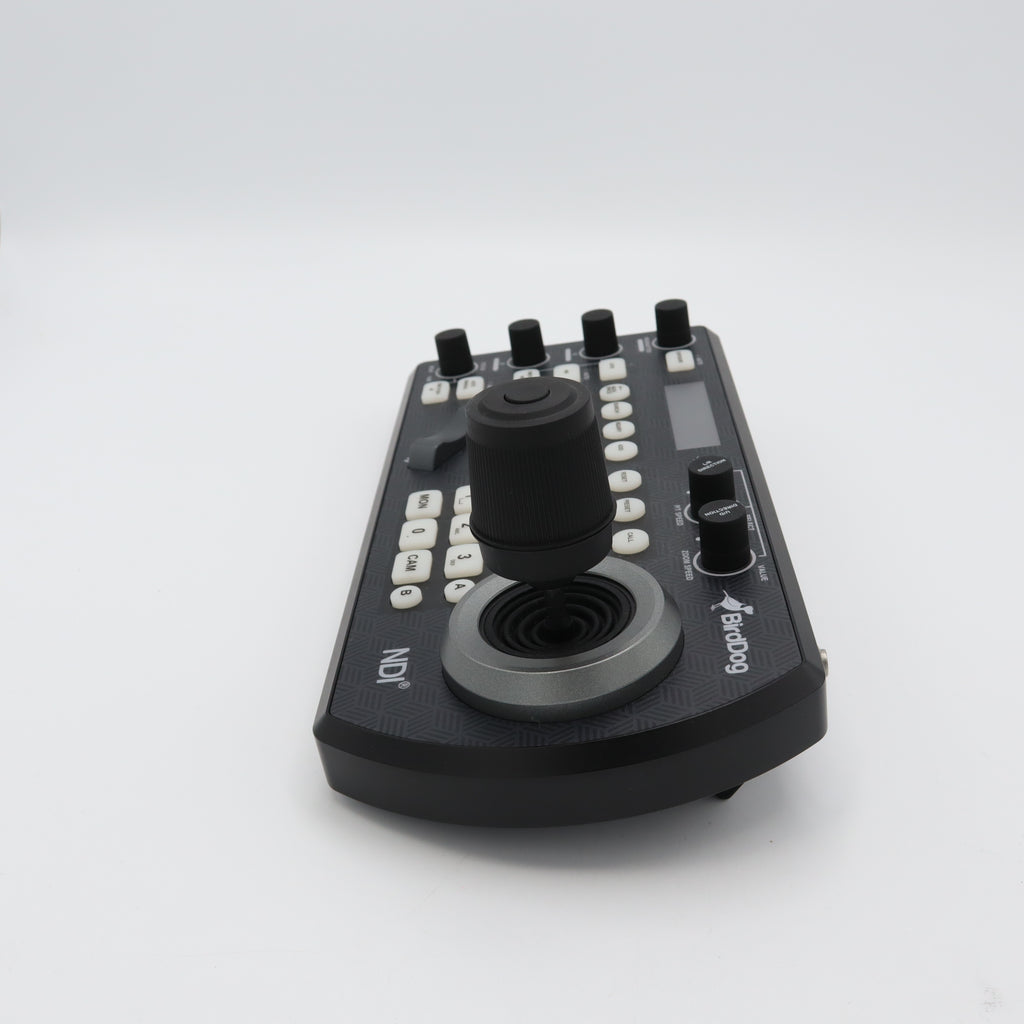

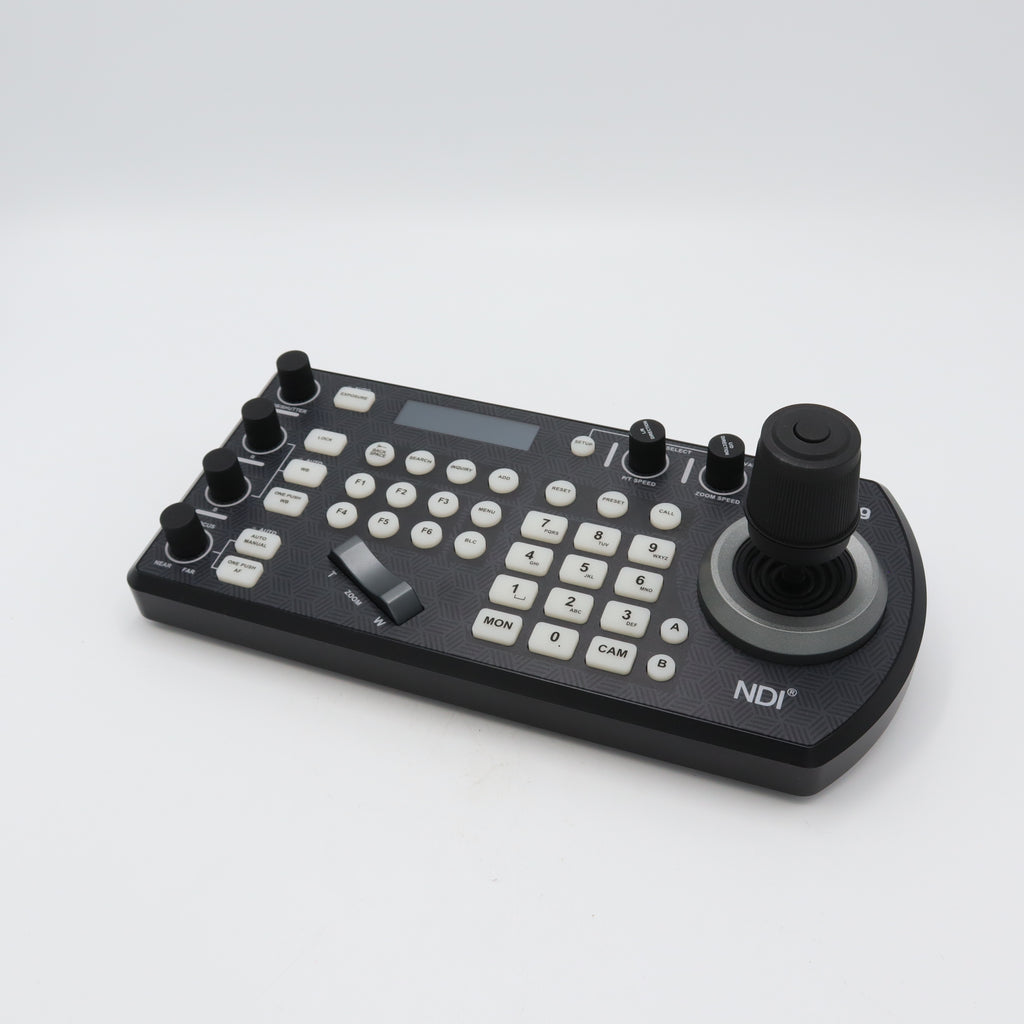

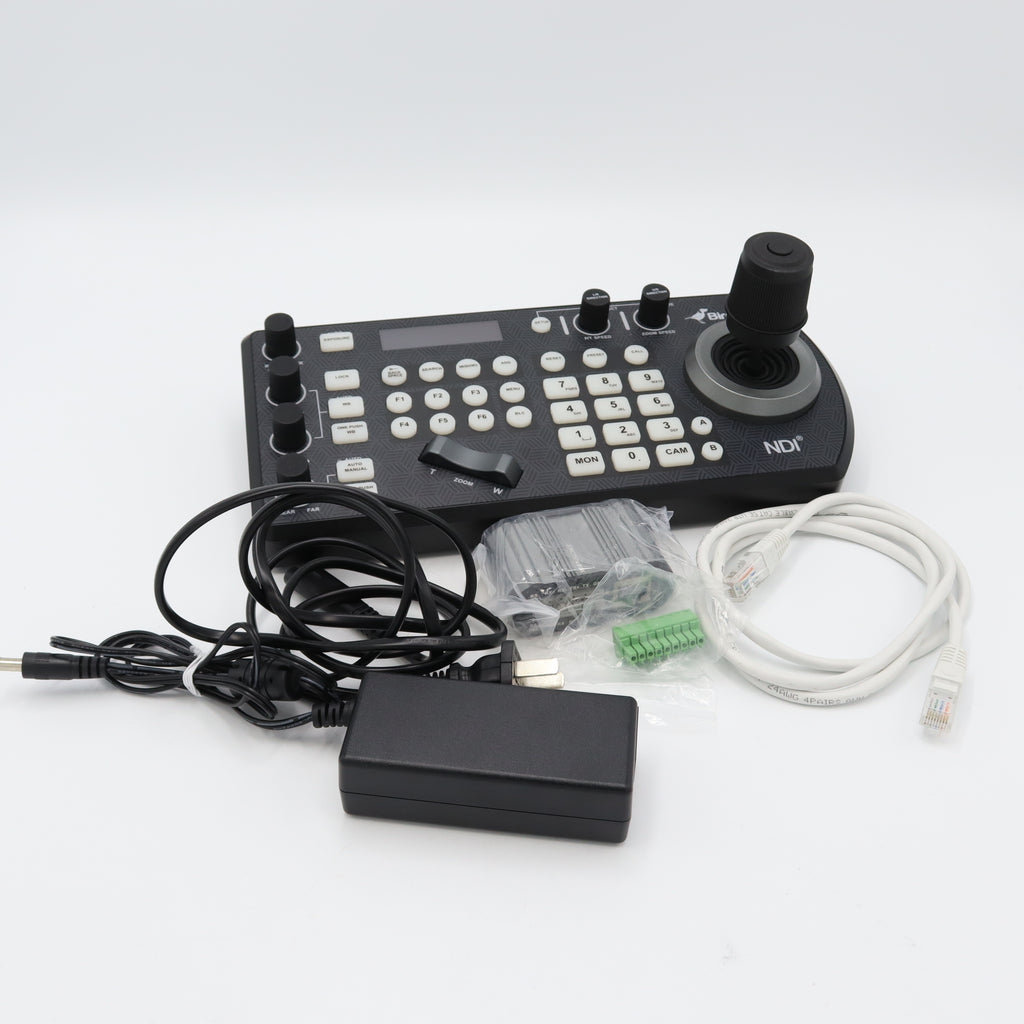

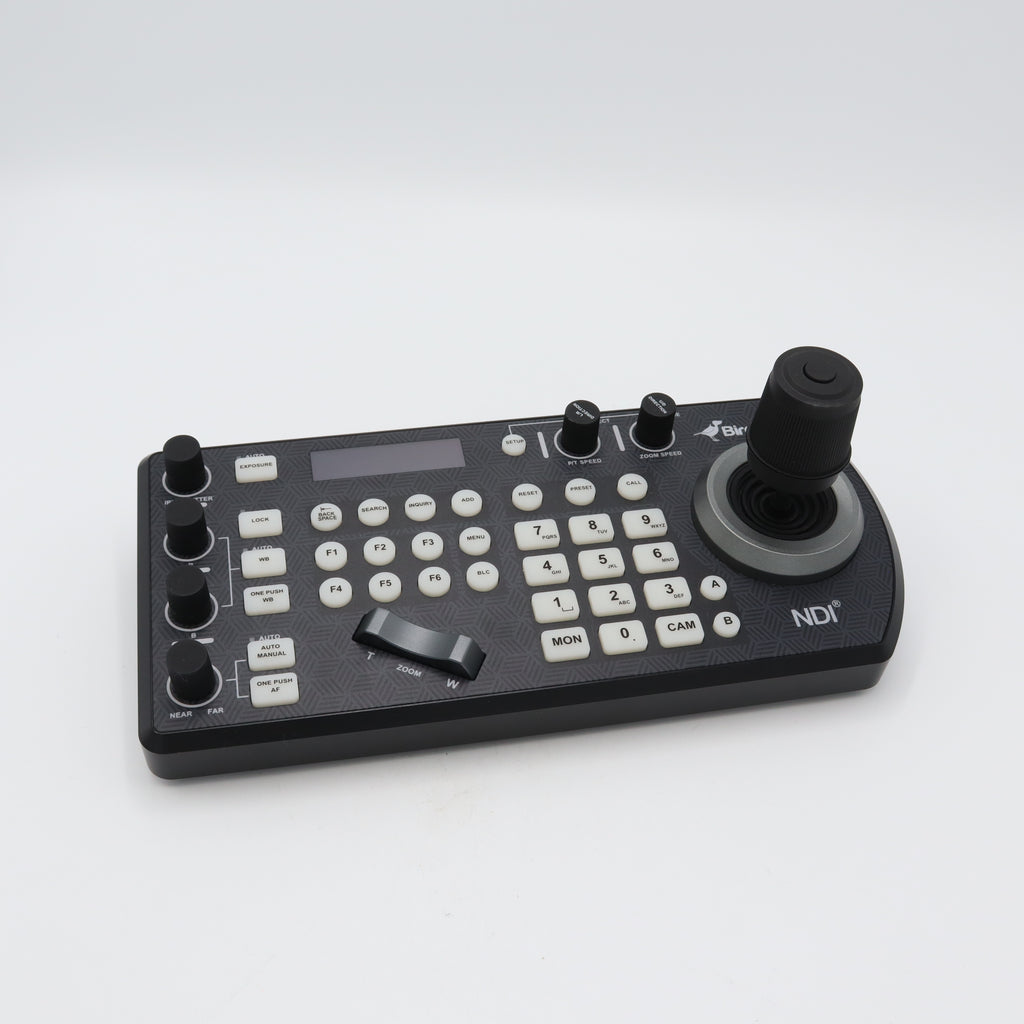

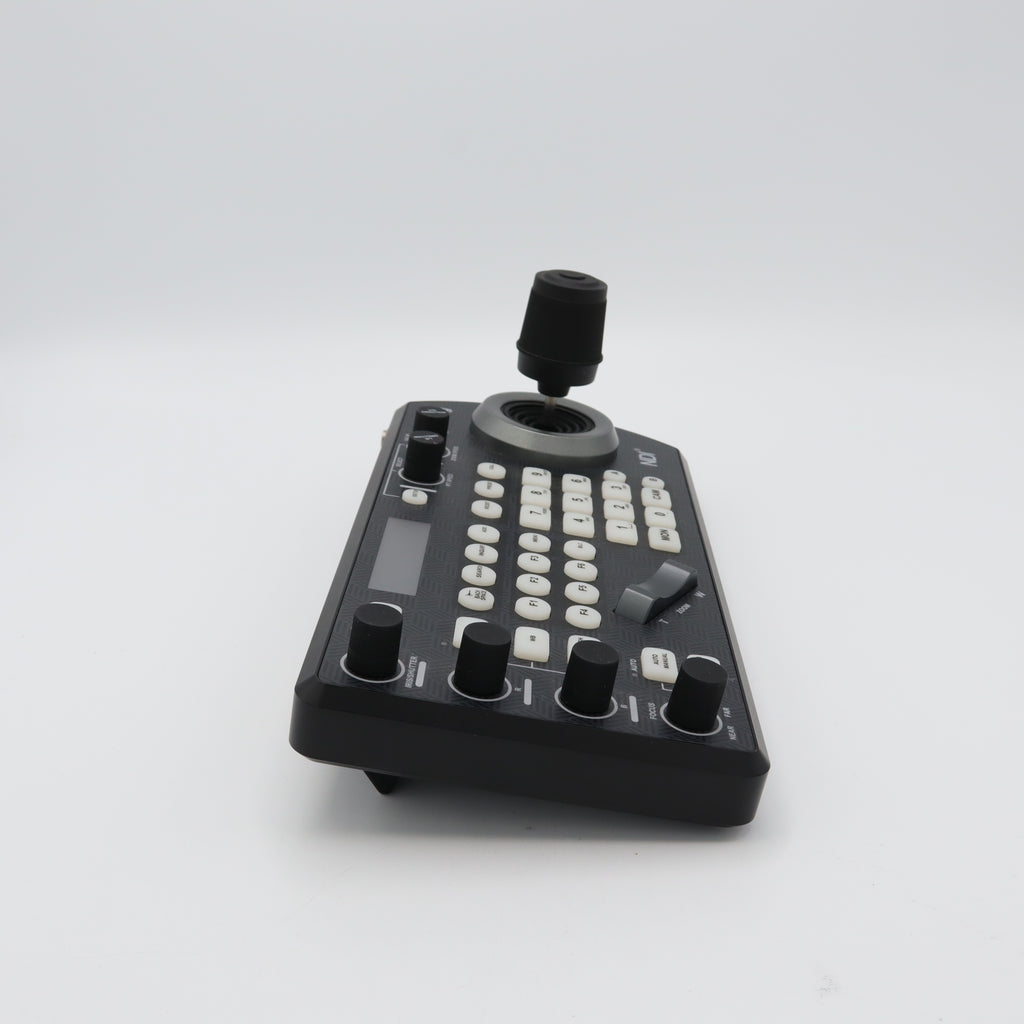

BirdDog NDI PTZ Keyboard Controller *USED*

The Bolin Technology NDI-Enabled IP PTZ Camera Controller is an upgraded PTZ control interface with NDI technology designed to make PTZ functions easy to perform. Use the joystick, knobs, buttons, and rocker controls to facilitate movement for up to 14 cameras via VISCA protocol and up to 255 camera via ONVIF, VISCA-over-IP, and serial RS-232/485/422 communication. An integrated LED status display makes for easy monitoring of your movements. Power is delivered to the controller via PoE+ or using the 12 VDC power supply.
Quick Access Controls

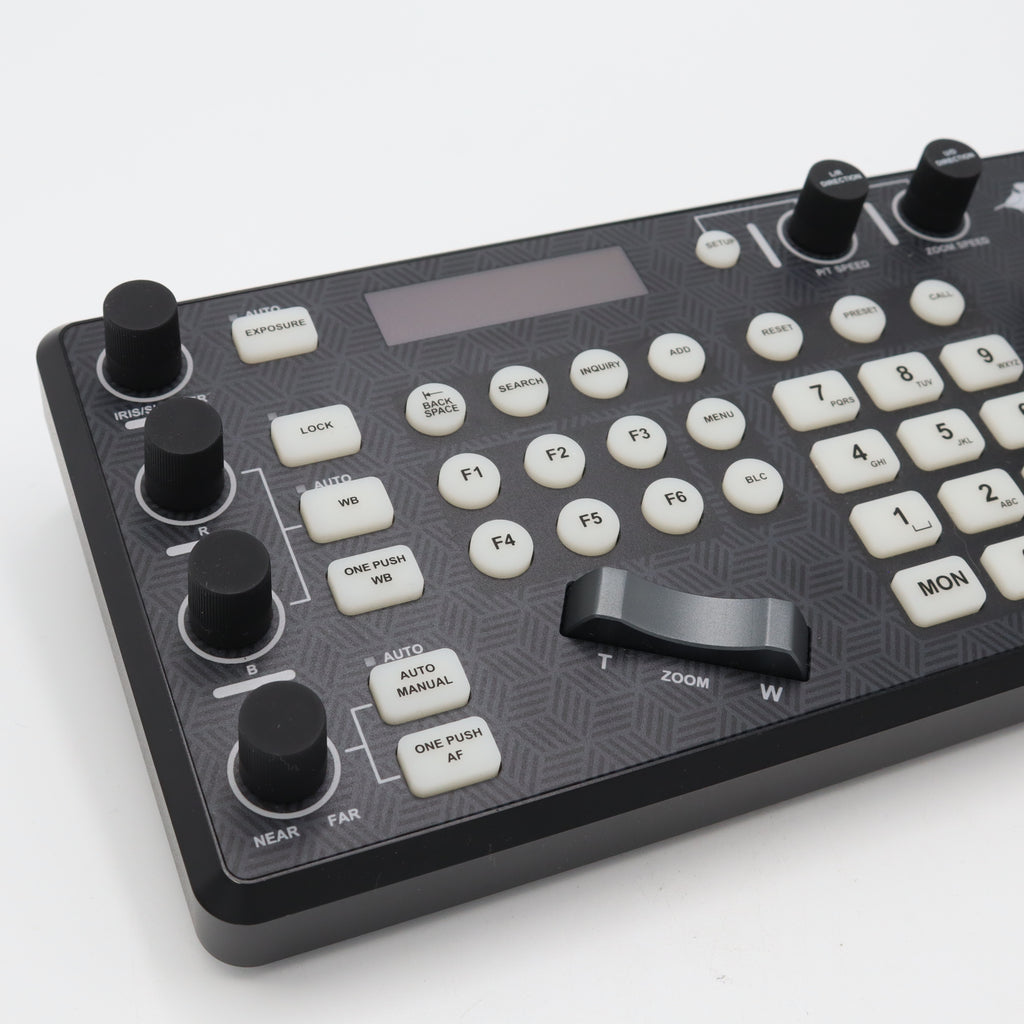

Dedicated knobs for quick access features include control for exposure, shutter speed, iris, compensation, white balance, focus, PT speed, and zoom speed. Toggle between auto and manual control modes, utilize the illuminated buttons for camera selection, and the 3-axis joystick for precise camera movements.
Selectable ASSIGN Items
ASSIGN keys allow you to select additional functions and assign them for one-key quick actions. Potential actions include camera flicker, status display, AE level, SRZ, Tele Convert mode, trace memory, ND filter, Picture Profile settings, rain wiper on/off, camera power, etc.
Other PTZ Control Features
Supports Bolin image rolling adjustment control
Pan, tilt, zoom 3-way simultaneous joystick control
Seesaw lever zoom control
Instant variable speed adjustment for PTZ
Trace Memory allows sequence of camera moves to be stored and recalled whenever required
Instant camera focusing by manually fine tuning and One Push focus
Transfer Keyboard & Camera Configuration Data
Use IP software tools to modify and organize the controller's configuration and export/import existing PTZ camera registration data via IP network to make setup a breeze, especially when you have multiple controllers in a single system.
Image Parameter Controls
Control image color and exposure related settings via VISCA protocols. Settings include black levels, white balance, auto/manual exposure level, iris, gain, and shutter speed, which can be adjusted directly without using the camera menus.
Direct IP PTZ Assignment

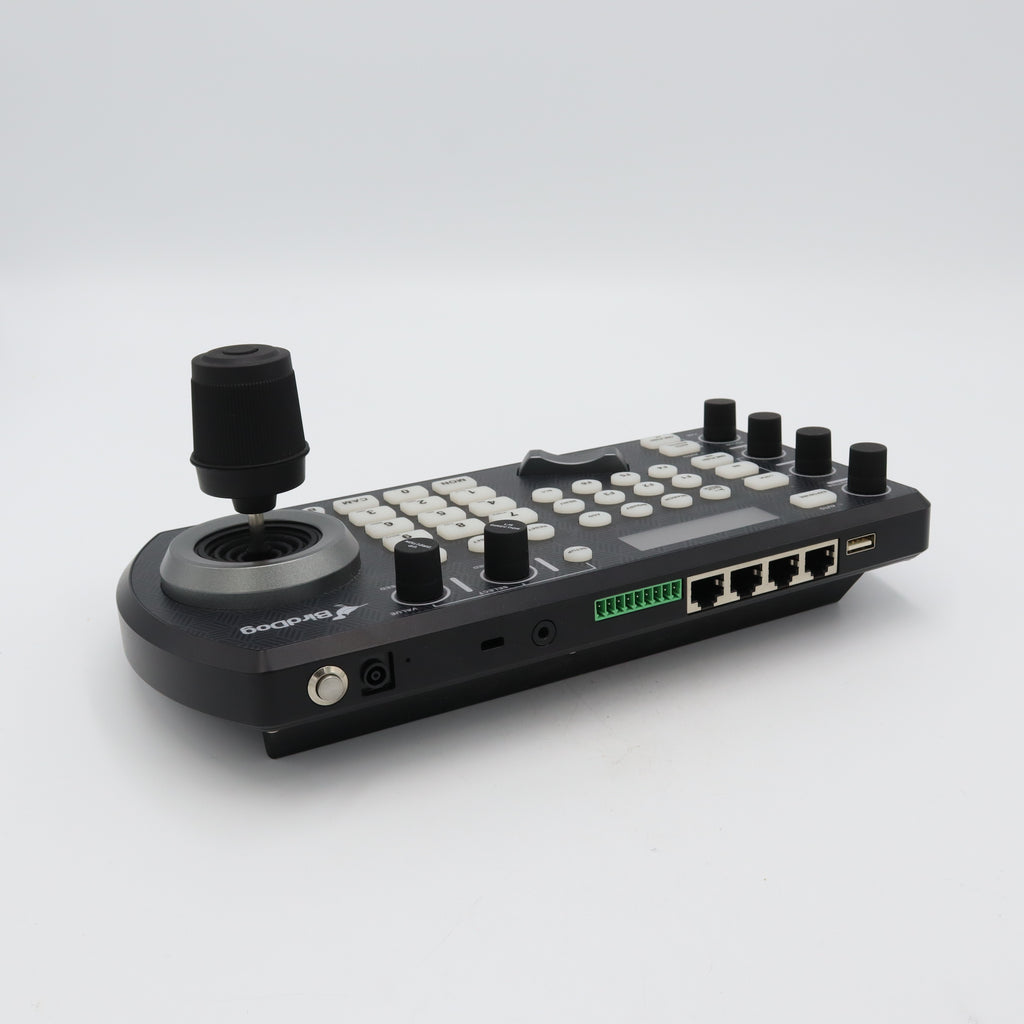

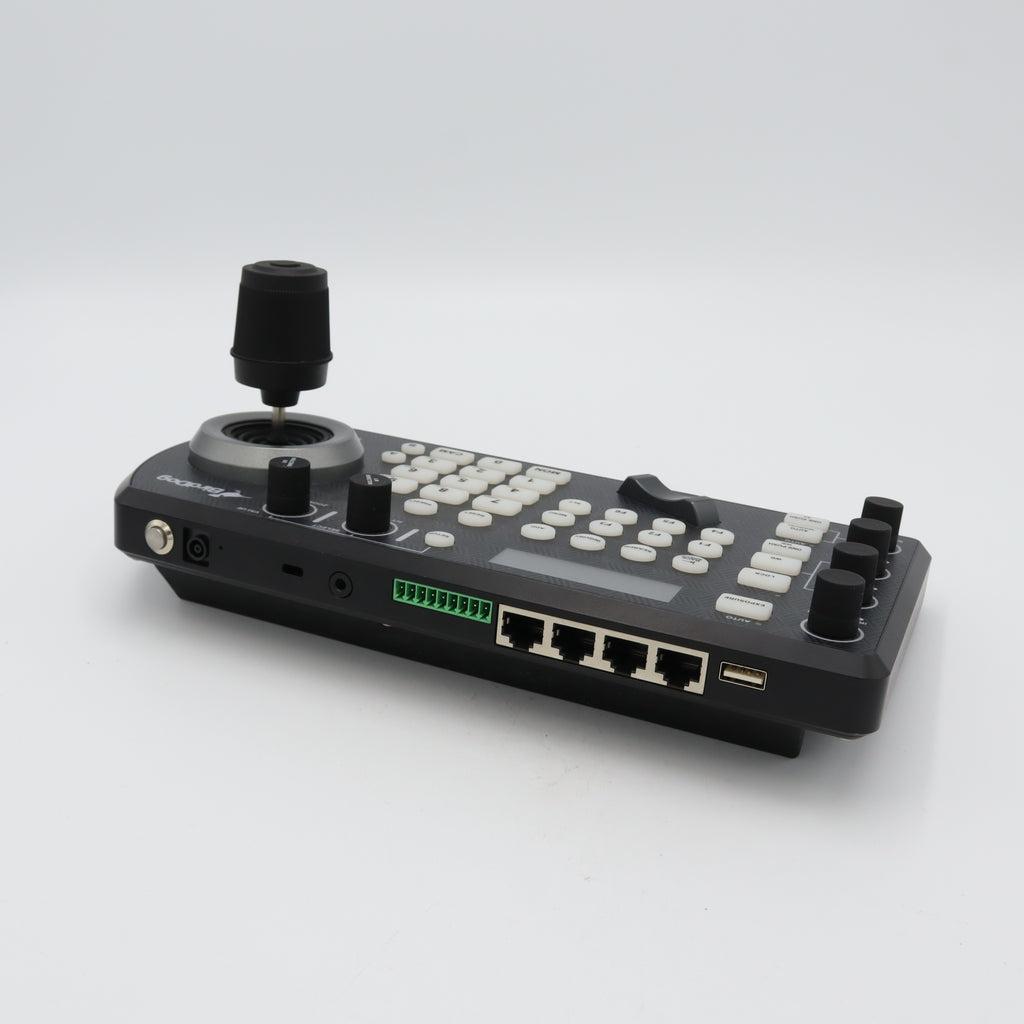

Automatically search available IP cameras in the network. Assign IP addresses and facilitate camera registration with ease. The PoE+ port provides power over serial control cable to keep the back-panel wired connections organized.
Store and Recall Camera Presets
Camera presets with position, zoom, and image parameter settings can be stored and recalled using the numeric keypad.
Wide Power Voltage Tolerance
With a voltage tolerance of 6 to 48V, the controller can support longer distance power runs, making it suitable for vehicles or mobile equipment carts.
Switch Video Router
The controller is compatible with the Blackmagic SDI video router for simultaneous PTZ control and camera/monitor switching.
Easily Upgradeable
Perform firmware upgrades via USB/IP to keep your controller up to date.
Mix Different Camera Brands
VISCA over IP port can be used with any brand of compatible cameras for a single shared system with no conflicts.
